DILM9-32 (24VDC)

DILM9-32 (24 VDC) Klockner Moeller xStart Contactors

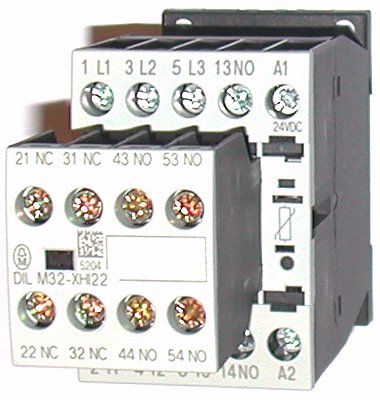

The Klockner Moeller DILM9-32 (24VDC)
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 5 HP at 460V. It comes with
3NO and 2NC  auxiliary contact.
Conforms to IEC 60947

DC Operating Coil Voltage:

24VDC

Other DILM Contactors

Tools Required:

Pozidriv Screwdriver size 2

Accessories:

Auxiliary Contact Blocks

Suppressors

Overload Relays:

ZB12 Motor Overload Relays



View Data Sheet



DILM9-32(24VDC)

---

Selection Chart:

Amp  ratings	Three phase HP ratings		Auxiliary contacts		Coil Voltage / DC Voltage	Catalog No.
AC1	230V	460V	NO	NC
20	3	5	2	1	24VDC	DILM9-32(24VDC)

DILM9-32(24VDC) Contact Sequence



DILM9-32(24VDC) Dimensions
