DILM95-22 Klockner Moeller xStart Contactors

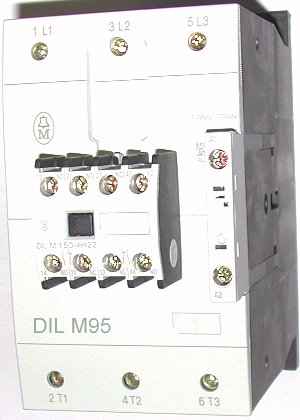

The Klockner Moeller DILM95-22
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 40 HP at 230V
and 75 HP at 460V.
Conforms to IEC 60947
AC/DC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accesories:
Overload Relays:
DILM95-22
AC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 40 | 75 |
2 | 2 |
24V50HZ/60HZ | DILM95-22(24V50HZ/60HZ) |
| 110V50HZ, 120V60HZ | DILM95-22(110V50HZ, 120V60HZ) | ||||
| 208V50/60HZ | DILM95-22(208V60HZ) | ||||
| 230V50, 240V60HZ | DILM95-22(230V50, 240V60HZ) | ||||
| 415V50, 440V60HZ | DILM95-22(415V50, 480V60HZ) | ||||
DC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / DC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 40 | 75 |
2 | 2 |
RDC24 | DILM95-22(RDC24) |
DILM95-22 Contact Sequence
DILM95-22 Dimensions
