ZB12-16

ZB12-16

Klockner Moeller Electric
Genuine New OEM Part

  • $77.10
    Unit price per

In stock, can ship today!

717-209-7100



Call to Order 717-209-7100
Same Day Shipping

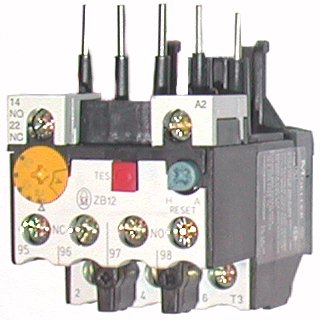

ZB12-16 Klockner Moeller Overload Relay

The Klockner Moeller ZB12-16  / Eaton ZB12-16 or  XTOB016BC1
is an IEC rated thermal overload relay
used for the protection of three-phase motors.
Klockner Moeller overload relays reliably protect loads
against overload, phase asymmetry and phase failure.
Class 10
Size B

AMP RANGE:

12- 16



TOOLS REQUIRED:


Pozidriv Screwdriver size 2
pozidrive screwdriver

FOR USE WITH:



pdfpicVIEW DATA SHEET

ZB12-16  THERMAL OVERLOAD RELAY


SELECTION CHART:

Frame
Size
Class For Contactor Setting Range Amps Catalog No.
B 10 DILM7, DILM9, DILM12, DILM15 12 - 16 ZB12-16


ZB12-16  CONTACT SEQUENCE:






ZB12-16  DIMENSIONS:
