3RT1016-1B..1 Siemens Sirius Contactors.
Call to order (717) 209-7100
or click on price to order

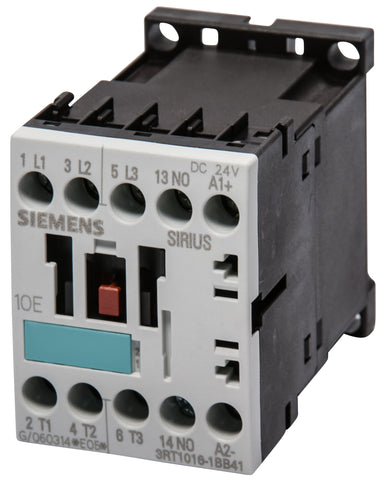

The Siemens 3RT1016-1B / 3RT1016-1B..1
is a 3-phase IEC rated contactor used for
the control of electric motors. It is rated
2 HP at 230V and 3 HP at 460V.
Conforms to IEC 60946
Other 3RT Contactors
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
Overload Relays:
Replacment Parts:
|
Description: Siemens Sirius 3RT1016-1B..1 is a very compact industrial motor starter contactor, suitable for starting 3-phase motors up to 3 HP @ 230 volts and 5 HP @ 460 volts. One normally-open auxiliary contact is included, and additional auxiliary contacts can be front mounted. Plug-in overload relays are also available. |
||||||
| 3RT1016-1B..1 Contactor Selection Chart: | ||||||
| 3-Phase Motor Horsepower |
Built-In Auxiliary Contacts |
Cont. Amps |
DC Coil Voltage |
Catalog # | ||
| 2 hp @ 200 V 3 hp @ 230 V 5 hp @ 460 V 7½ hp @ 575 V |
1 - N.O. | 20 | 12 | 3RT1016-1BA41 | ||
| 24 | 3RT1016-1BB41 | |||||
| 48 | 3RT1016-1BW41 | |||||
| 110 | 3RT1016-1BF41 | |||||
| 230 | 3RT1016-1BP41 | |||||
|
Coil Power Consumption: Inrush: 3.3 watts, Sealed: 3.3 watts.
|
||||||
|
Maximum Wire Size: 2 x 14 AWG, 1 x 12 AWG
|
||||||
|
Click here for: pricing auxiliary contacts plug-in overload relays
|
||||||
|
Dimensions:
|
||||||
