Siemens Sirius 3RT1024-1A Contactor, specifications & dimensions

pricing | auxiliary contacts | plug-in overload relays

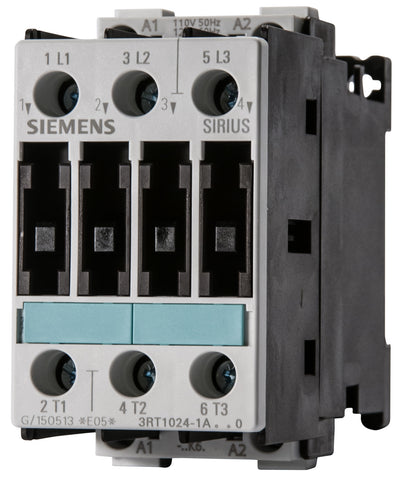

Siemens Sirius 3RT1024-1A is a heavy-duty industrial motor starter contactor, suitable for starting 3-phase motors up to 3 HP @ 230 volts and 7� HP @ 460 volts.

Auxiliary contacts can be front or side mounted. Plug-in overload relays are also available.

3RT1024-1A Contactor Selection Chart:
3-Phase
Motor
Horsepower
Built-In
Auxiliary
Contacts
Cont.
Amps
AC Coil
Voltage
Catalog #
3 hp @ 200 V
3 hp @ 230 V
7� hp @ 460 V
10 hp @ 575 V
- 20 24 3RT1024-1AC20
120 3RT1024-1AK60
208 3RT1024-1AM20
240 3RT1024-1AP60
480 3RT1024-1AV60
Coil Power Consumption: Inrush: 69 VA., Sealed: 7.5 VA.
Maximum Wire Size: 2 x 10 AWG, 1 x 8 AWG
Dimensions:



These units have track-mounting clips for 35mm DIN-rail as standard.
Front-mounted auxiliary contacts add an extra 49mm to the depth.
Side-mounted contacts add an extra 10mm to the side, per each block.
