3RH2140-1A

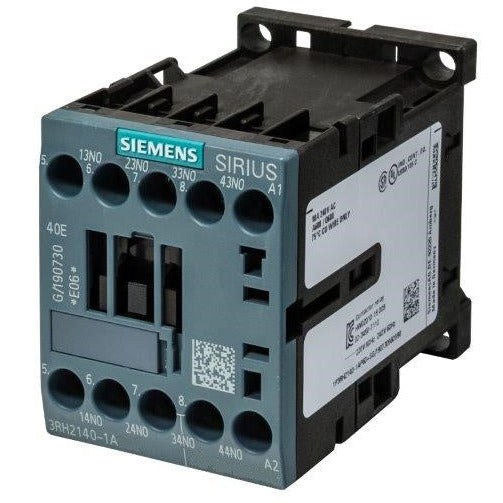

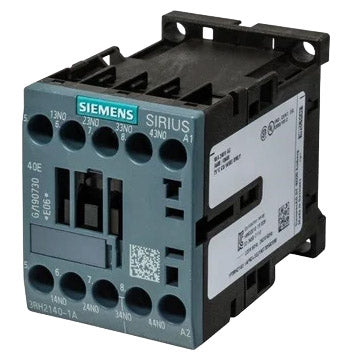

3RH2140-1A SIEMENS SIRIUS CONTROL RELAY

The Siemens Sirius 3RH2140-1A is
a 4 pole IEC rated Control Relay with 4
fixed contacts. It comes with 4NO
contacts.
Identification Number 40E.
International Standard EN 50 011
Conforms to IEC 60947-5-1

3RH2140-1A CONTROL RELAY

---

SELECTION CHART:

Frame Size	Identification No.	Auxiliary contacts		Coil Voltage / AC Voltage		Catalog No.
		NO	NC	50Hz	60Hz
S00	40E	4	0	24V	24V	3RH2140-1AB00
				110V	120V	3RH2140-1AK60
				220V	240V	3RH2140-1AP60

WORLDWIDE SELECTION CHART:

Frame Size	Identification No.	Auxiliary contacts		Coil Voltage / AC Voltage		Catalog No.
		NO	NC	50Hz	60Hz
S00	31E	3	1	42V	42V	3RH2140-1AD00
				110V	110V	3RH2140-1AF00
				48V	-	3RH2140-1AH00
				120V	120V	3RH2140-1AK20
				208V	208V	3RH2140-1AM20
				220V	220V	3RH2140-1AN20
				230V	-	3RH2140-1AP00
				400V	-	3RH2140-1AV00
				-	480V	3RH2140-1AV60

3RH2140-1A CONTACT SEQUENCE
