CA7-72

Sprecher Schuh - CA7-72 - CONTACTORS

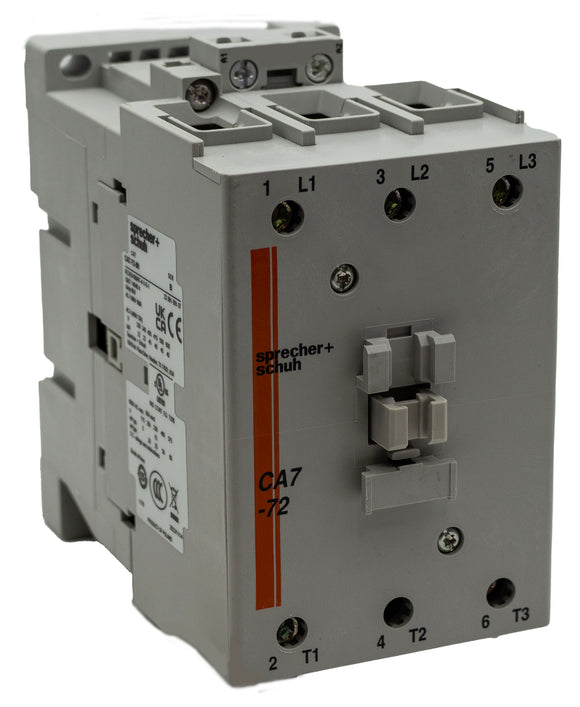

The Sprecher Schuh CA7-72 is a 3-phase IEC-rated contactor used for the control of electric motors. It is rated 25 HP at 230V and 50 HP at 460V. Conforms to IEC/EN 60947-4-1 / 5-1

CA7 -72

CA7 -72 01

CA7 -72 10

CA7 -72 200

CA7 -72 300

CA7 -72 400

AC/DC OPERATING COIL VOLTAGE:

Options listed below

Other CA7- contactors

TOOLS REQUIRED:

Pozidriv Screwdriver size 2

CA7-72 3-POLE AC CONTACTOR

---

CONTACTOR SELECTION CHART:

Contactor	Amp ratings		Three phase HP ratings		Auxiliary contacts		Catalog No.
	AC3	AC1	230V	460V	NO	NC
3-pole	72	100	25	50	0	0	CA7-72*00
					0	1	CA7-72*01
					1	0	CA7-72*10

CA7-72 4-POLE AC CONTACTOR

---

CONTACTOR SELECTION CHART:

Contactor	Amp ratings		Three phase HP ratings		Auxiliary contacts		Catalog No.
	AC3	AC1	230V	460V	NO	NC
4-pole	72	100	25	50	2	2	CA7-72*200
					3	1	CA7-72*300
					4	0	CA7-72*400

100-C72 3-POLE DC CONTACTOR

---

CONTACTOR SELECTION CHART:

Contactor	Amp ratings		Three phase HP ratings		Auxiliary contacts		Catalog No.
	AC3	AC1	230V	460V	NO	NC
3-pole	72	100	25	50	0	1	CA7-72E*01
					1	0	CA7-72E*10

100-C72 4-POLE DC CONTACTOR

---

CONTACTOR SELECTION CHART:

Contactor	Amp ratings		Three phase HP ratings		Auxiliary contacts		Catalog No.
	AC3	AC1	230V	460V	NO	NC
4-pole	72	100	25	50	2	2	CA7-72E*200
					3	1	CA7-72E*300
					4	0	CA7-72E*400

CA7-72 DIMENSIONS
