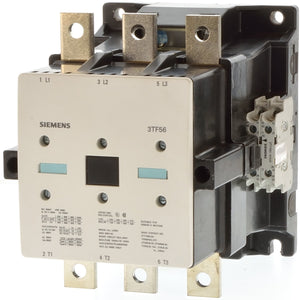

Siemens - 3TF56 motor starters - contactors
The Siemens 3TF56 is a
3-phase IEC rated contactor
used for the control of electric
motors. It is rated 150 HP at
230V and 300 HP at 460V.
Conforms to IEC 60946
3TF56 3-Pole with AC Coil
Selection Chart:
| Frame Size |
Amp ratings |
Three phase HP ratings |
Auxiliary contacts |
Catalog No. | ||||
|---|---|---|---|---|---|---|---|---|
| UL/CSA | AC3 | AC1 | 230V | 460V | NO | NC | ||
| S12 | 400 | 400 | - | 150 | 300 | 1 | 1 | 3TF5611-0A |
| 2 | 2 | 3TF5622-0A | ||||||
| 2 | 2 | 3TF5622-1D | ||||||
| 4 | 4 | 3TF5644-0A | ||||||
| 4 | 4 | 3TF5644-1D | ||||||
