3RT1046-1A Siemens Sirius Contactors


Call to order (717) 209-7100
or click on price to order

The Siemens 3RT1046-1A..0 / 3RT1046-1A
is a 3-phase IEC rated contactor used for
the control of electric motors. It is rated
30 HP at 230V and 75 HP at 460V.
Conforms to IEC 60946

Other 3RT Contactors

Tools Required:
Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:

Overload Relays:

Replacment Parts:


3RT1046-1A Contactor Selection Chart:
3-Phase
Motor
Horsepower
Built-In
Auxiliary
Contacts
Cont.
Amps
AC Coil
Voltage
Catalog #
30 hp @ 200 V
30 hp @ 230 V
75 hp @ 460 V
100 hp @ 575 V
- 105 24 3RT1046-1AC20
120 3RT1046-1AK60
208 3RT1046-1AM20
240 3RT1046-1AP60
480 3RT1046-1AV60
Coil Power Consumption: Inrush: 300 VA., Sealed: 21 VA.
Maximum Wire Size: 2 x 1/0 AWG, 1 x 2/0 AWG

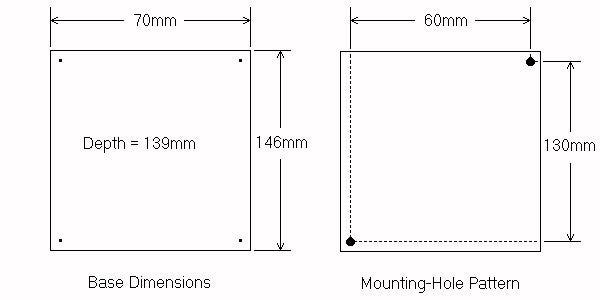

Dimensions:



These units have track-mounting clips for 35mm DIN-rail as standard.
Front-mounted auxiliary contacts add an extra 49mm to the depth.
Side-mounted contacts add an extra 10mm to the side, per each block.
