3RT1046-1B Siemens Sirius Contactors.
Call to order (717) 209-7100
or click on price to order
The Siemens 3RT1046-1B..0 / 3RT1046-1B
is a 3-phase IEC rated contactor used for
the control of electric motors. It is rated
30 HP at 230V and 75 HP at 460V.
Conforms to IEC 60946
Other 3RT Contactors
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
Overload Relays:
Replacment Parts:
|
Description: Siemens Sirius 3RT1046-1B is a heavy-duty industrial motor starter contactor, suitable for starting 3-phase motors up to 30 HP @ 230 volts and 75 HP @ 460 volts. Auxiliary contacts can be front or side mounted. Plug-in overload relays are also available. |
||||||
| 3RT1046-1B Contactor Selection Chart: | ||||||
| 3-Phase Motor Horsepower |
Built-In Auxiliary Contacts |
Cont. Amps |
DC Coil Voltage |
Catalog # | ||
| 30 hp @ 200 V 30 hp @ 230 V 75 hp @ 460 V 100 hp @ 575 V |
- | 105 | 24 | 3RT1046-1BB40 | ||
| 48 | 3RT1046-1BW40 | |||||
| 110 | 3RT1046-1BF40 | |||||
| 125 | 3RT1046-1BG40 | |||||
| 230 | 3RT1046-1BP40 | |||||
|
Coil Power Consumption: Inrush: 15 watts, Sealed: 15 watts.
|
||||||
|
Maximum Wire Size: 2 x 1/0 AWG, 1 x 2/0 AWG
|
||||||
|
Click here for: pricing auxiliary contacts plug-in overload relays
|
||||||
|

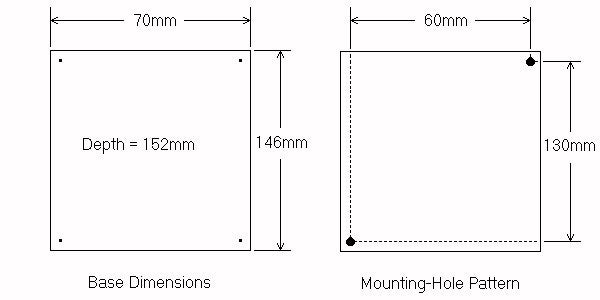

Dimensions:
|
||||||
