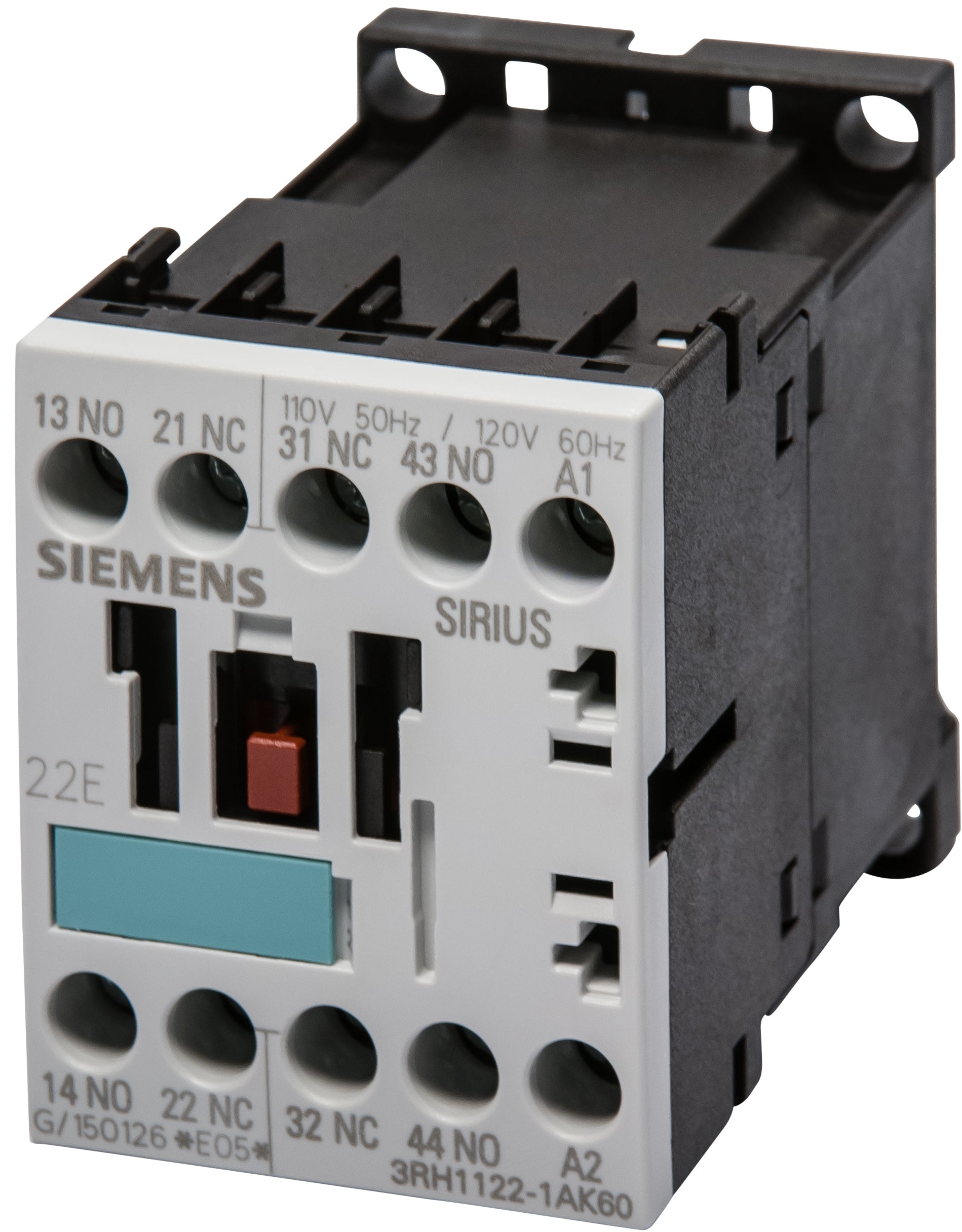

3RH1122-1AK60 Siemens Sirius Control Relay
The Siemens 3RH1122-1AK60 is a 4 pole
IEC rated Control Relay with 4 fixed
contacts. It comes with 2NO and 2NC contacts.
Identification Number 22E.
International Standard EN 50 011
Conforms to IEC 60947-5-1
3RH1122-1AK60 Control Relay
Selection Chart:
Frame Size |
Identification No. |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
---|---|---|---|---|---|---|
NO | NC | 50Hz | 60Hz | |||
S00 | 22E | 2 | 2 | 110V | 120V | 3RH1122-1AK60 |
3RH1122-1AK60 Contact Sequence
![](/siemens.sirius/p/3rh/3rh1122-1ak60-contact-sequence.jpg)
3RH1122-1AK60 Dimensions
![](/siemens.sirius/p/3rh/3rh1122-1ak60-dimensions.jpg)
