3RH1140-1A Siemens Sirius Control Relay
The Siemens Sirius 3RH1140-1A is
a 4 pole IEC rated Control Relay with 4
fixed contacts. It comes with 4NO
contacts.
Identification Number 40E.
International Standard EN 50 011
Conforms to IEC 60947-5-1
Options listed below
Other 3RH11 Control Relays
Other 3RH11 Control Relays
Accessories:
3RH1140-1A Control Relay
Selection Chart:
| Frame Size |
Identification No. |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|---|
| NO | NC | 50Hz | 60Hz | |||
| S00 | 40E | 4 | 0 | 24V | 24V | 3RH1140-1AB00 |
| 110V | 120V | 3RH1140-1AK60 | ||||
| 220V | 240V | 3RH1140-1AP60 | ||||
Worldwide Selection Chart:
| Frame Size |
Identification No. |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|---|
| NO | NC | 50Hz | 60Hz | |||
| S00 | 31E | 3 | 1 | 42V | 42V | 3RH1140-1AD00 |
| 110V | 110V | 3RH1140-1AF00 | ||||
| 48V | - | 3RH1140-1AH00 | ||||
| 120V | 120V | 3RH1140-1AK20 | ||||
| 208V | 208V | 3RH1140-1AM20 | ||||
| 220V | 220V | 3RH1140-1AN20 | ||||
| 230V | - | 3RH1140-1AP00 | ||||
| 400V | - | 3RH1140-1AV00 | ||||
| - | 480V | 3RH1140-1AV60 | ||||

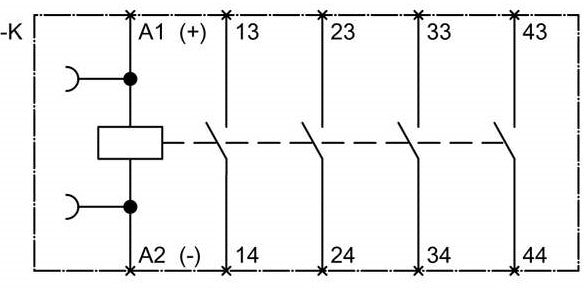

3RH1140-1A Contact Sequence
