3RH1911-1BA10 Siemens Auxiliary Contact Block
The Siemens 3RH1911-1BA10 is a
snap on front mount auxiliary
contact block with 1NO contact.
Idnetification No. 10
Conforms to IEC 60947-5-1
3RH1911-1BA10 Auxiliary Contact Block
Selection Chart:
| Mechanical Service Life | Identification No. |
Operating Current at AC-15 | Auxiliary contacts |
Catalog No. | ||||
|---|---|---|---|---|---|---|---|---|
| Switching Cycles | 24V | 230V | 400V | 690V | NO | NC | ||
| 10 000 000 | 10 | 6 | 6 | 3 | 1 | 1 | 3RH1911-1BA10 | |

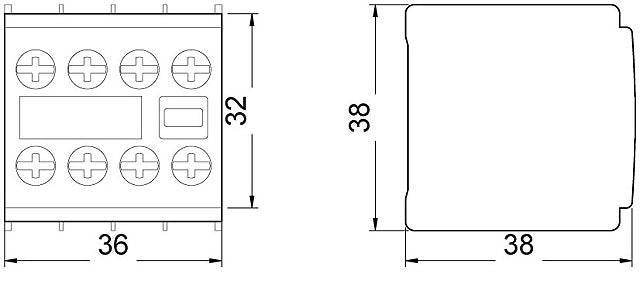

3RH1911-1BA10 Dimensions
