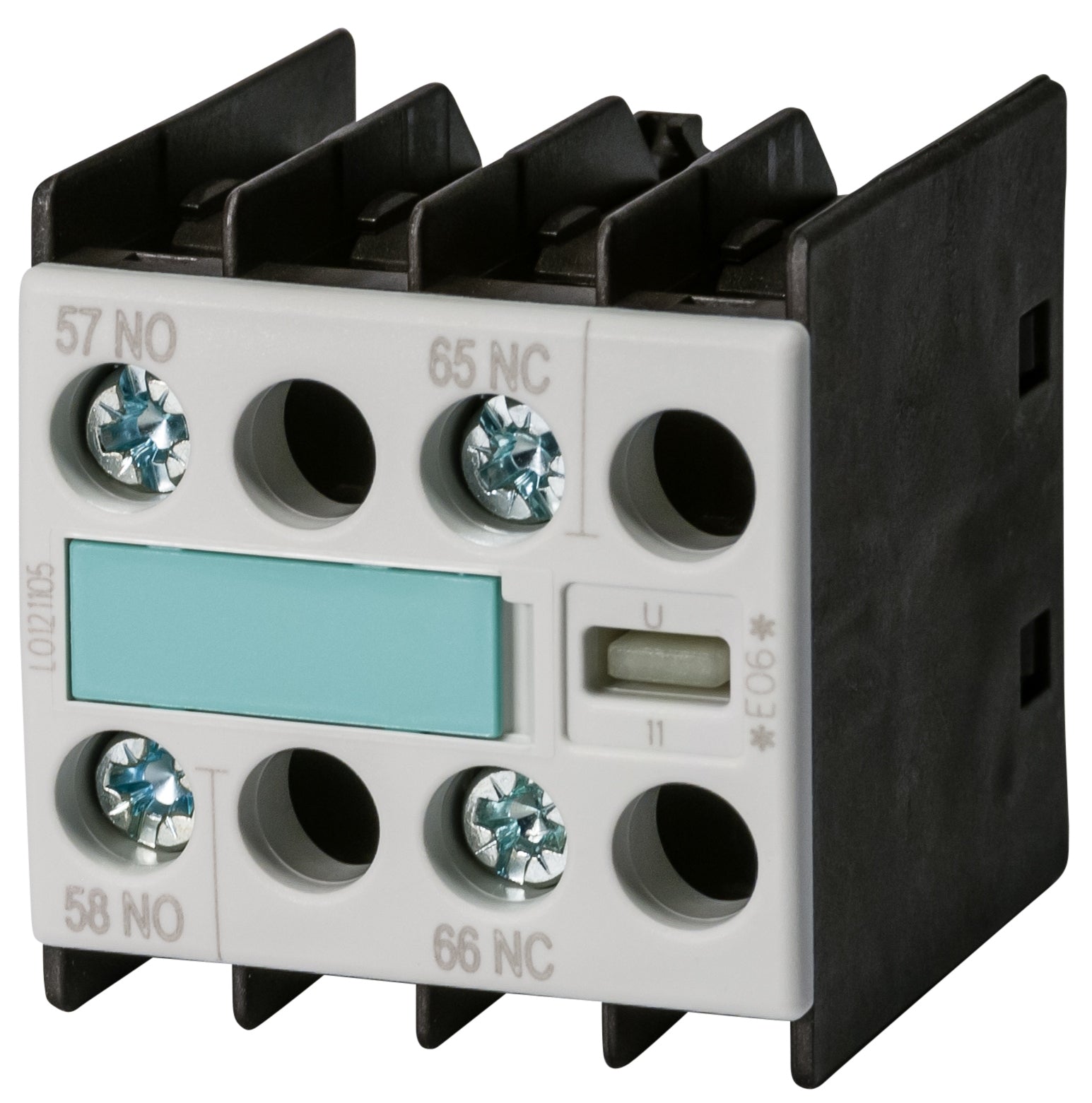

3RH1911-1FB11 Siemens Auxiliary Contact Block
The Siemens 3RH1911-1FB11 is a
snap on front mount auxiliary
contact block with 1NO and 1NC
overlapping contacts. (Early Make/Late Break)
Identification No. 11 / 1U
Conforms to IEC 60947-5-1
3RH1911-1FB11 Auxiliary Contact Block
Selection Chart:
| Mechanical Service Life | Identification No. |
Operating Current at AC-15 | Auxiliary contacts |
Catalog No. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Switching Cycles | 24V | 230V | 400V | 690V | NO | NC | Early Make |
Late Break |
||
| 10 000 000 | 11/ 1U | 6 | 6 | 3 | 1 | - | - | 1 | 1 | 3RH1911-1FB11 |

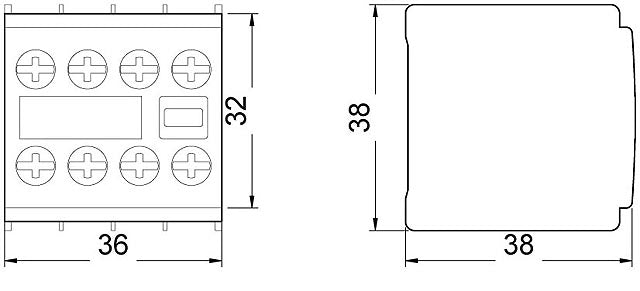

3RH1911-1FB11 Dimensions
