3RH1911-1GA31
Stock item. Call for stock check.
Call to Order 717-209-7100
Same Day Shipping

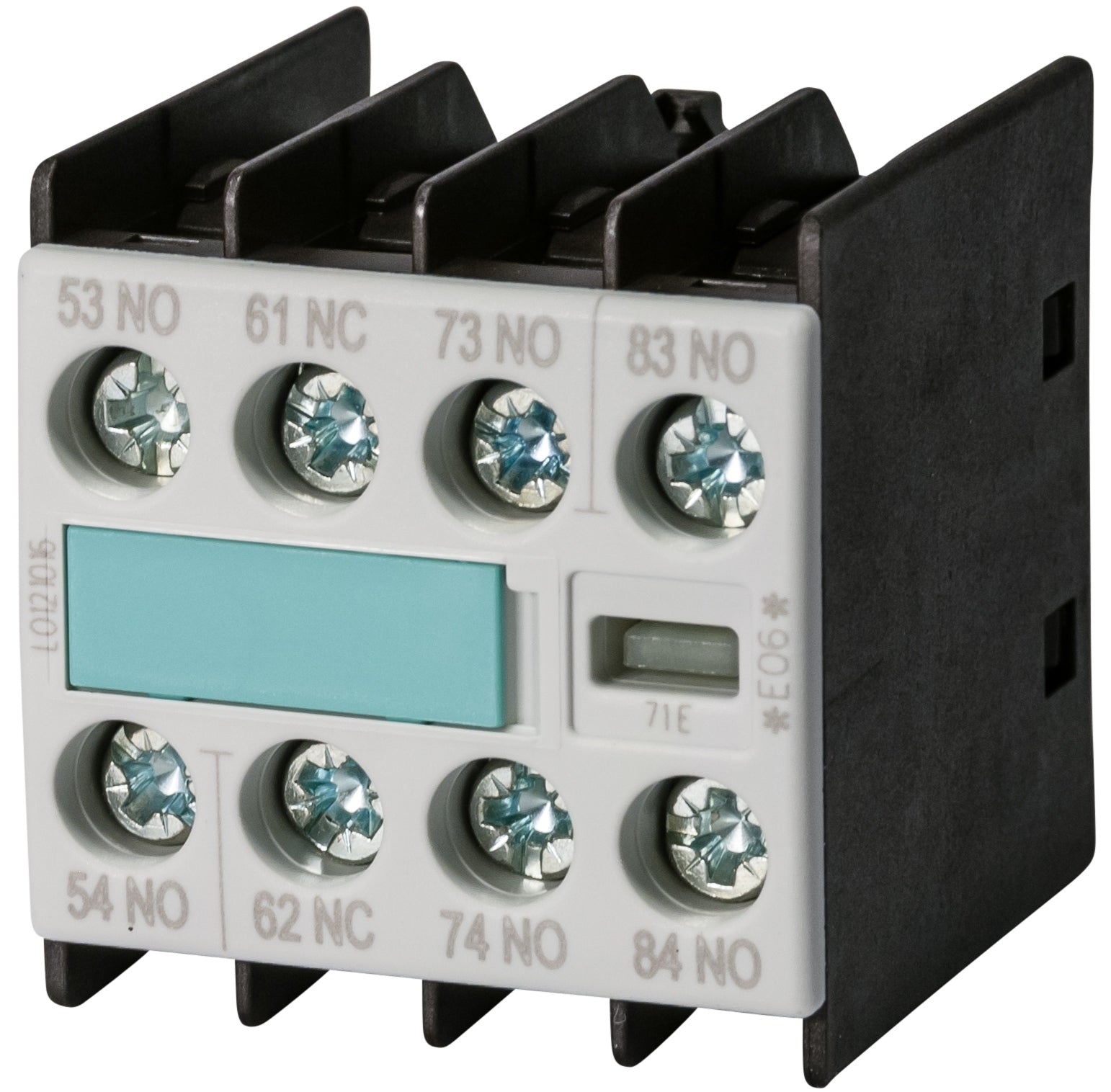

3RH1911-1GA31 Siemens Auxiliary Contact Block
The Siemens 3RH1911-1GA31 is a
snap on front mount auxiliary
contact block with 3NO and 1NC contacts.
Identification No. 71E
Conforms to IEC 60947-5-1
3RH1911-1GA31 Auxiliary Contact Block
Selection Chart:
| Mechanical Service Life | Identification No. |
Operating Current at AC-15 | Auxiliary contacts |
Catalog No. | ||||
|---|---|---|---|---|---|---|---|---|
| Switching Cycles | 24V | 230V | 400V | 690V | NO | NC | ||
| 10 000 000 | 71E | 6 | 6 | 3 | 1 | 3 | 1 | 3RH1911-1GA31 |

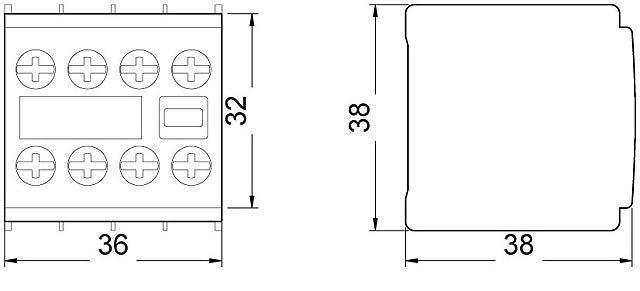

3RH1911-1GA31 Dimensions
