3RH1921-1CD01
In stock, can ship today!
717-209-7100
Call to Order 717-209-7100
Same Day Shipping

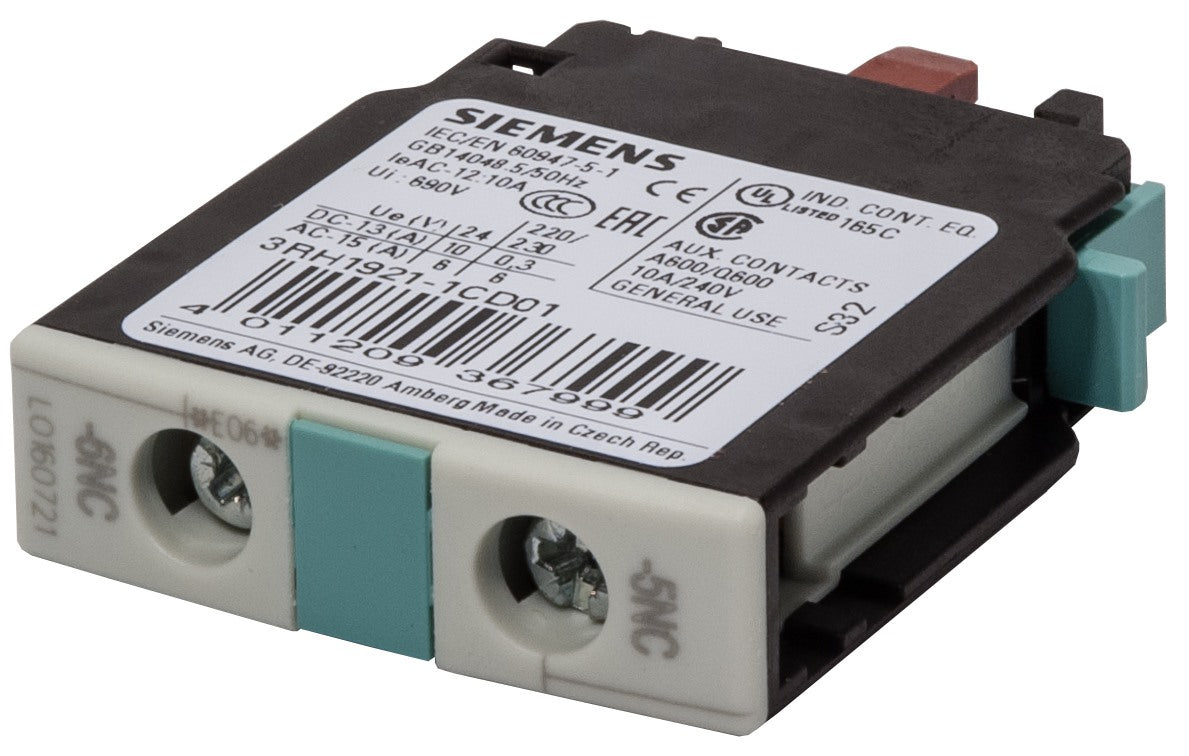

3RH1921-1CD01 Siemens Auxiliary Contact Block
The Siemens 3RH1921-1CD01 is a
snap on front mount auxiliary
contact block with 1NC contacts.
Conforms to IEC 60947-5-1
For Use With:
3RT102 Contactors
3RT103 Contactors
3RT104 Contactors
3RT105 Contactors
3RT106 Contactors
3RT107 Contactors
3RT103 Contactors
3RT104 Contactors
3RT105 Contactors
3RT106 Contactors
3RT107 Contactors
View Data Sheet
3RH1921-1CD01 Auxiliary Contact Block
Selection Chart:
| Mechanical Service Life | Operating Current at AC-15 | Auxiliary contacts |
Catalog No. | ||||
|---|---|---|---|---|---|---|---|
| Switching Cycles | 24V | 230V | 400V | 690V | NO | NC | |
| 10 000 000 | 6 | 6 | 3 | 1 | - | 1 | 3RH1921-1CD01 |
3RH1921-1CD01 Dimensions
