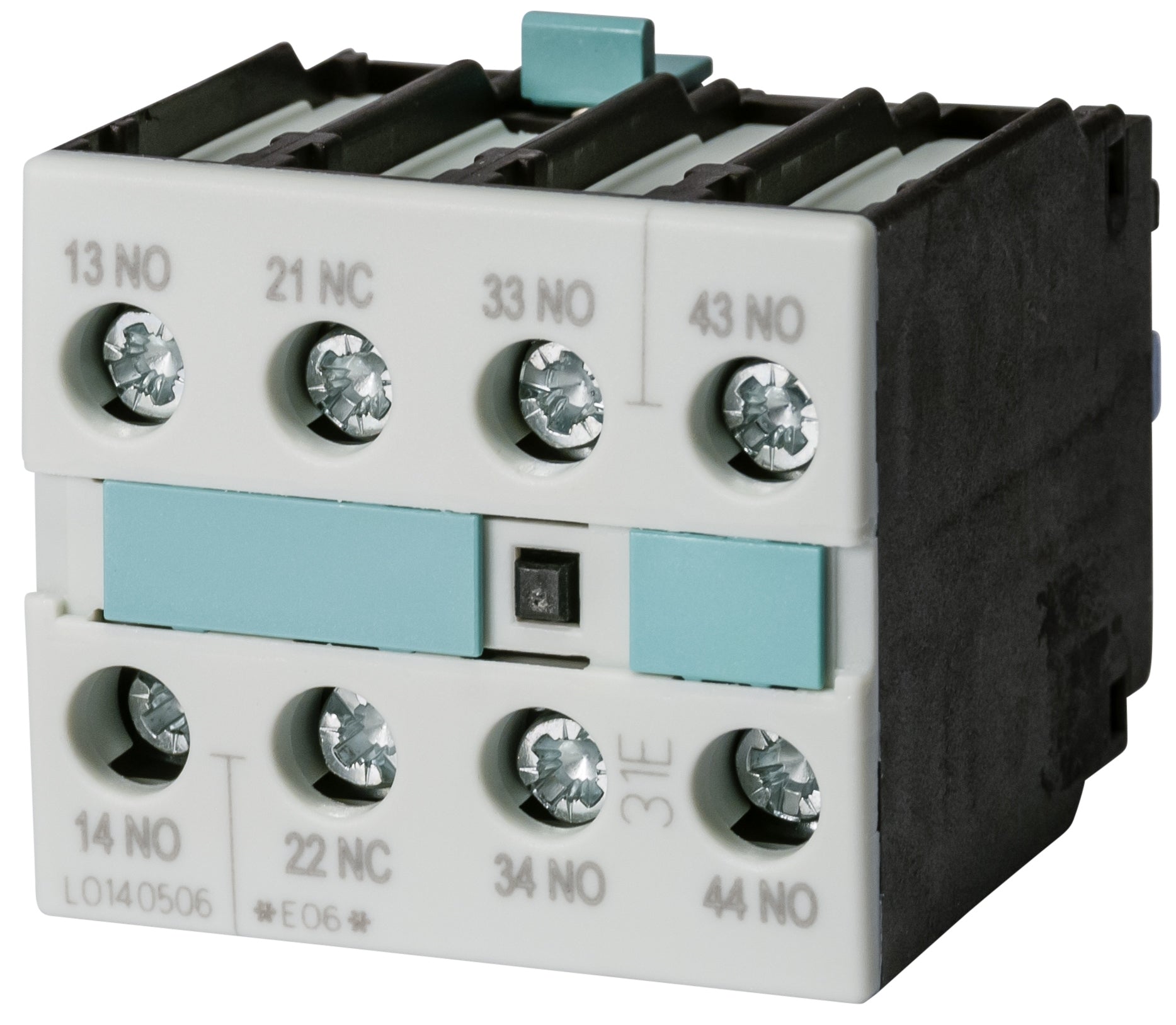

3RH1921-1HA31 Siemens Auxiliary Contact Block
The Siemens 3RH1921-1HA31 is a
snap on front mount auxiliary
contact block with 3NO and 1NC contacts.
Conforms to IEC 60947-5-1
Options listed below
For Use With:
3RT102 Contactors
3RT103 Contactors
3RT104 Contactors
3RT105 Contactors
3RT106 Contactors
3RT107 Contactors
3RT103 Contactors
3RT104 Contactors
3RT105 Contactors
3RT106 Contactors
3RT107 Contactors
View Data Sheet
3RH1921-1HA31 Auxiliary Contact Block
Selection Chart:
Mechanical Service Life | Operating Current at AC-15 | Auxiliary contacts |
Catalog No. | ||||
---|---|---|---|---|---|---|---|
Switching Cycles | 24V | 230V | 400V | 690V | NO | NC | |
10 000 000 | 6 | 6 | 3 | 1 | 3 | 1 | 3RH1921-1HA31 |
3RH1921-1HA31 Dimensions
![](/siemens.sirius/p/3rh/3rh1921-1ha31-dimensions.jpg)
