3RT1015-1BB41

Siemens Sirius - 3RT1015-1BB41 motor starters - contactors

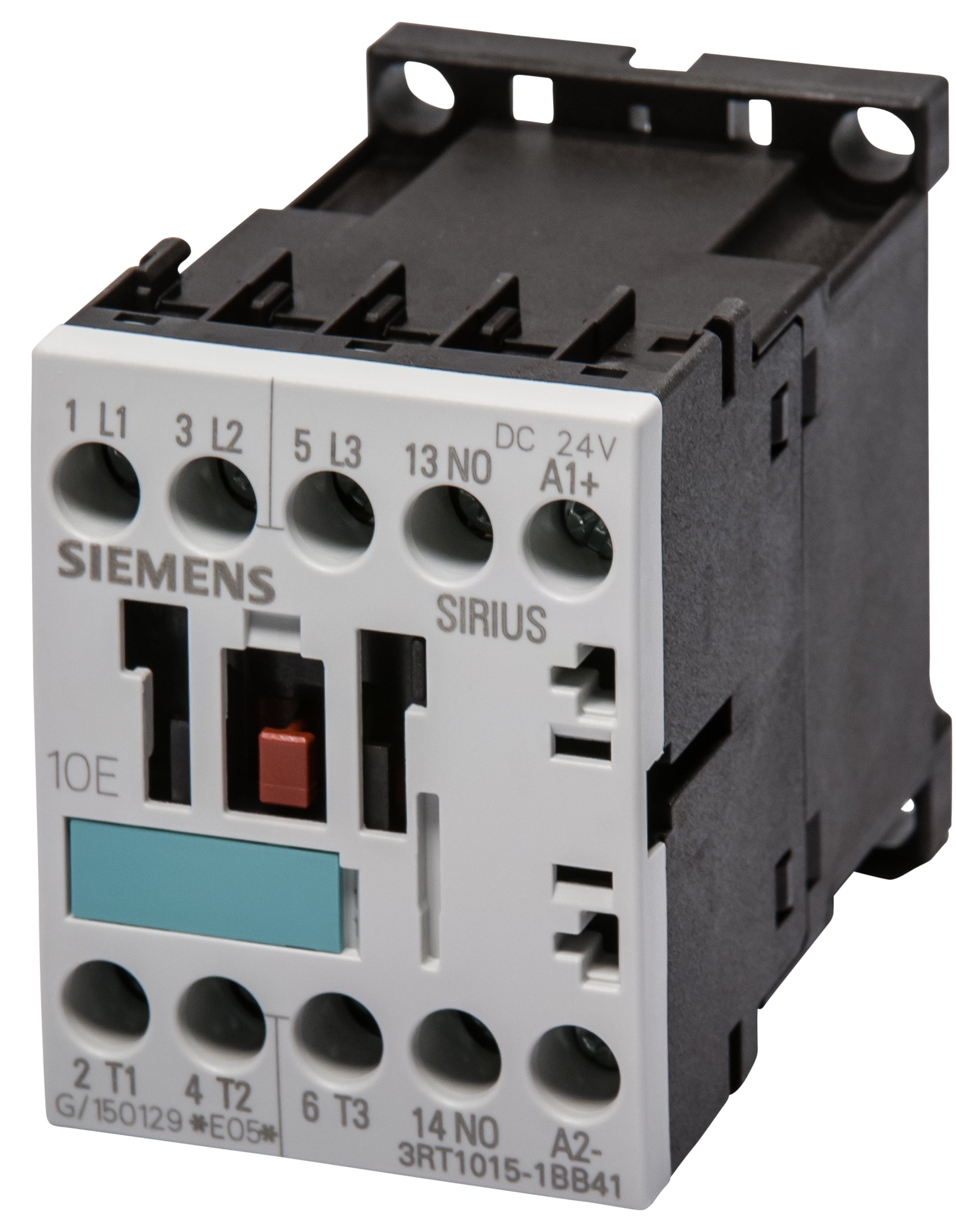

The Siemens Sirius 3RT1015-1BB41
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 2 HP at 230V
and 3 HP at 460V. It comes with
1NO auxiliary contact. 10E
Conforms to IEC 60946

DC Operating Coil Voltage:

24V
Other 3RT Contactors

Tools Required:

Pozidriv Screwdriver size 2

Accessories:

Auxiliary Contact Blocks
Surge Suppressors

Overload Relays:

3RU1116 Thermal Overload Relays

View Catalog Page

View Data Sheet

3RT1015-1BB41 3-pole contactor, DC

---

Selection Chart:

Frame Size	Amp ratings		Three phase HP ratings		Auxiliary contacts		Coil Voltage / DC Voltage	Catalog No.
	AC3	AC1	230V	460V	NO	NC
S00	7	18	2	3	1	0	24V	3RT1015-1BB41

3RT1015-1BB41 Contact Sequence

3RT1015-1BB41 Dimensions
