3RT1016-1AK61

Siemens Sirius - 3RT1016-1AK61 motor starters - contactors

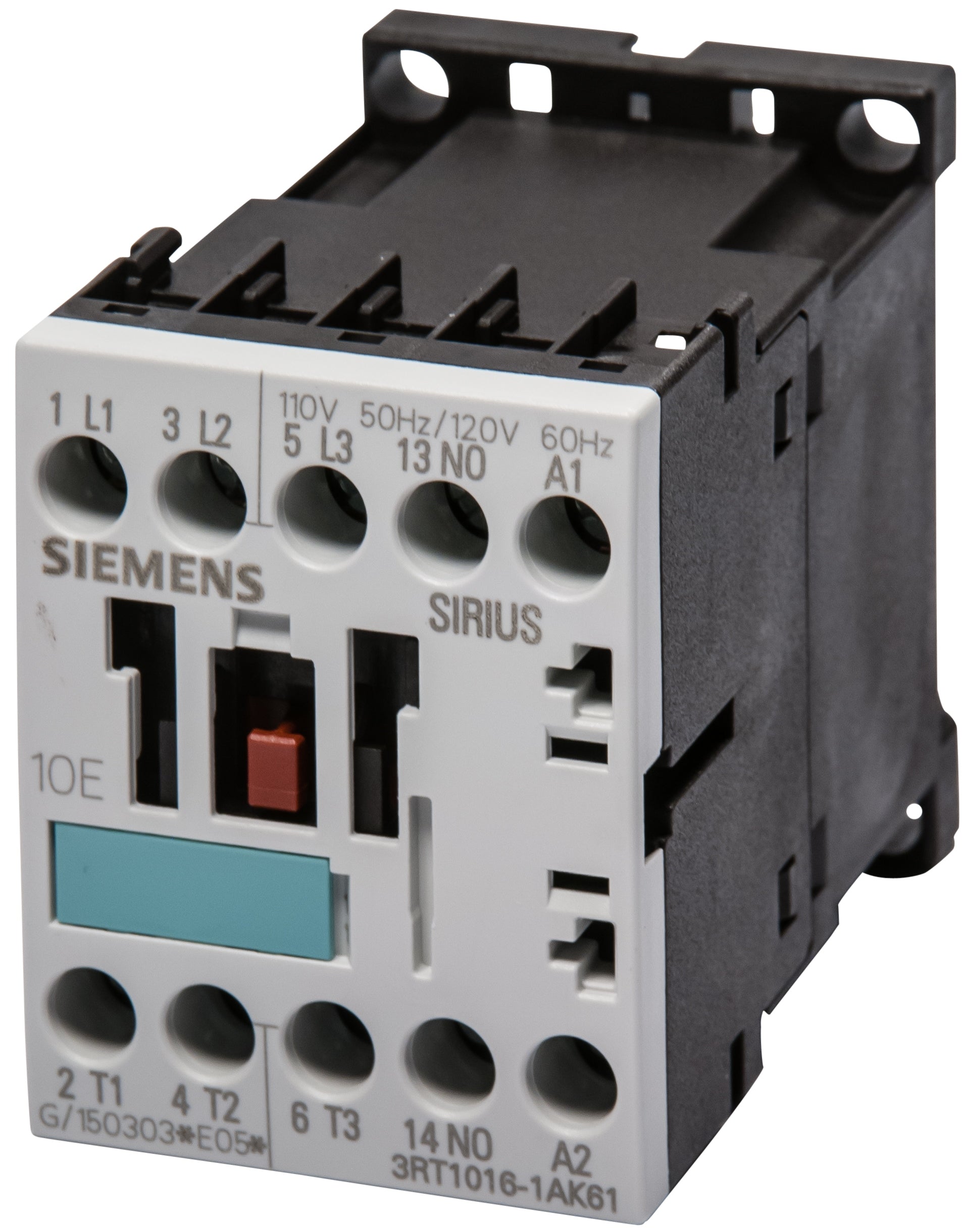

The Siemens Sirius 3RT1016-1AK61
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 5 HP at 460V. It comes with
1NO auxiliary contact. 10E
Conforms to IEC 60946

AC Operating Coil Voltage:

110V 50Hz / 120V 60Hz
Other 3RT Contactors

Tools Required:

Pozidriv Screwdriver size 2

Accessories:

Auxiliary Contact Blocks
Surge Suppressors

Overload Relays:

3RU1116 Thermal Overload Relays
3RB2016 Electronic Overload Relays

View Catalog Page

View Data Sheet

3RT1016-1AK61 3-pole contactor, AC

---

Selection Chart:

Frame Size	Amp ratings		Three phase HP ratings		Auxiliary contacts		Coil Voltage / AC Voltage		Catalog No.
	AC3	AC1	230V	460V	NO	NC	50Hz	60Hz
S00	9	22	3	5	1	0	110V	120V	3RT1016-1AK61

3RT1016-1AK61 Contact Sequence

3RT1016-1AK61 Dimensions
