3RT1033-1A..0

Siemens Sirius- 3RT1033-1A..0 motor starters - contactors

The Siemens 3RT1033-1A..0 / 3RT1033-1A
is a 3-phase IEC rated contactor used for
the control of electric motors. It is rated
10 HP at 230V and 20 HP at 460V.
Conforms to IEC 60946

Options listed below
Other 3RT Contactors

Tools Required:

Pozidriv Screwdriver size 2

Accessories:

Auxiliary Contact Blocks
Surge Suppressors
Mechanical Interlocks

Overload Relays:

3RU1136 Thermal Overload Relays
3RB2036 Electronic Overload Relays

Replacement Parts:

3RT Contactor Replacement Coils
3RT Contactor Repair Kits

3RT1033-1A..0

---

USA and Canada Selection Chart:

Frame Size	Amp ratings		Three phase HP ratings		Coil Voltage / AC Voltage		Catalog No.
	AC3	AC1	230V	460V	50Hz	60Hz
S2	28	50	10	20	24V	24V	3RT1033-1AC20
					110V	120V	3RT1033-1AK60
					220V	240V	3RT1033-1AP60

Worldwide Selection Chart:

Frame Size	Amp ratings		Three phase HP ratings		Coil Voltage / AC Voltage		Catalog No.
	AC3	AC1	230V	460V	50Hz	60Hz
S2	28	50	10	20	24V	-	3RT1033-1AB00
					42V	42V	3RT1033-1AD00
					48V	48V	3RT1033-1AD20
					110V	110V	3RT1033-1AF00
					110V	110V	3RT1033-1AG20
					48V	-	3RT1033-1AH00
					48V	48V	3RT1033-1AH20
					230V	230V	3RT1033-1AL20
					208V	208V	3RT1033-1AM20
					220V	220V	3RT1033-1AN20
					230V	-	3RT1033-1AP00
					-	600V	3RT1033-1AT60
					-	277V	3RT1033-1AU60
					400V	-	3RT1033-1AV00
					-	480V	3RT1033-1AV60

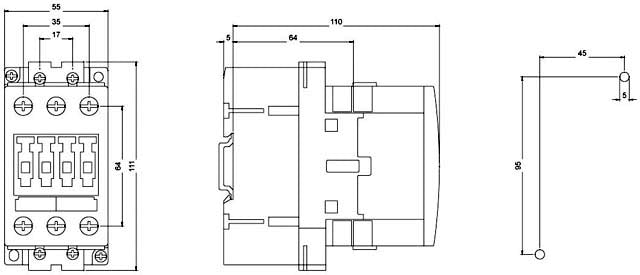

3RT1033-1A..0 Dimensions
