3RT1056-6AF36

Siemens Sirius - 3RT1056-6af36 motor starters - contactors

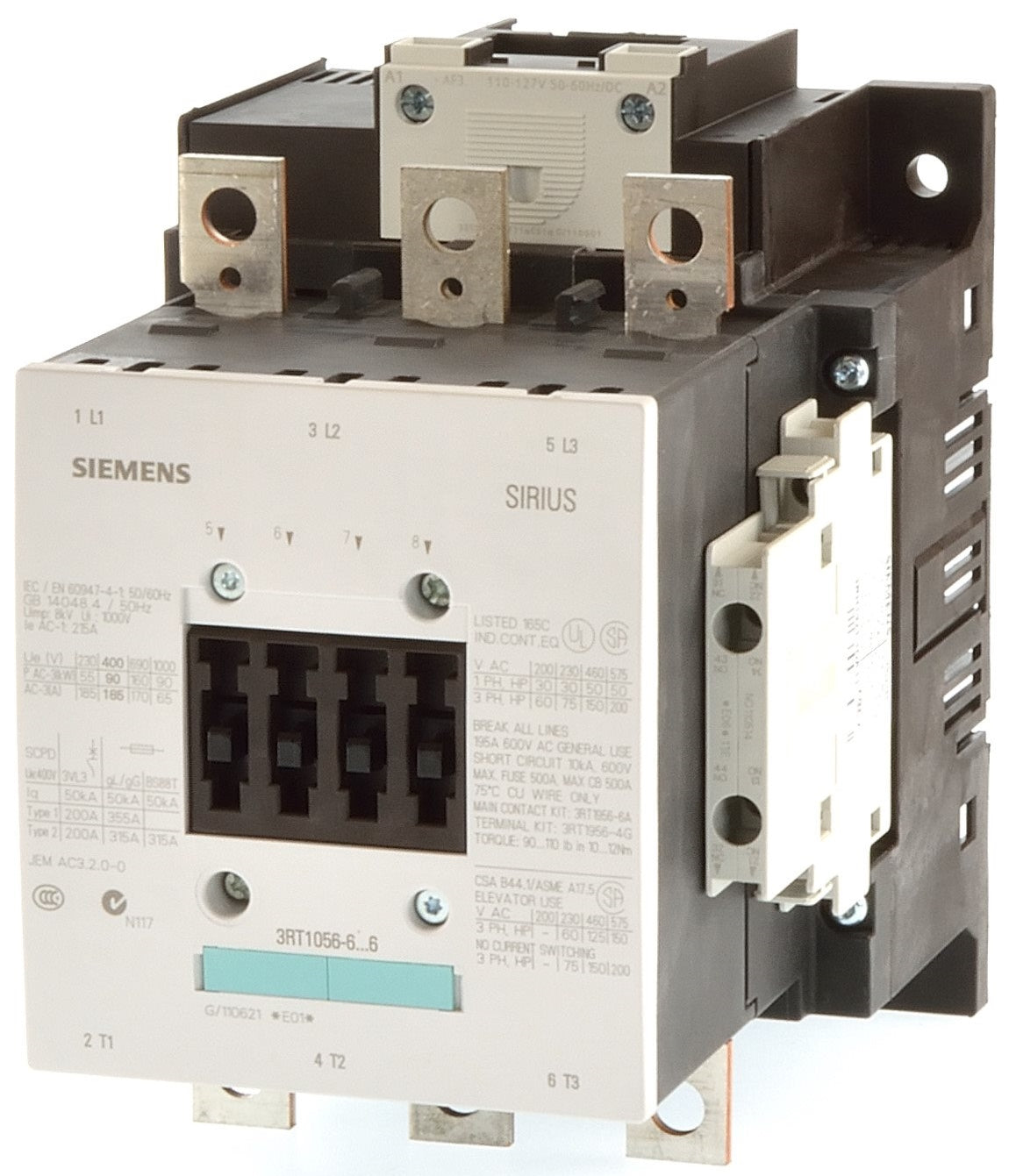

The Siemens Sirius 3RT1056-6AF36
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 75 HP at 230V
and 150 HP at 460V.
Conforms to IEC 60947-4-1
3ZX1012-0RT05-1AA1

AC/DC Operating Coil Voltage:

110-127 50-60Hz/DC
Other 3RT Contactors

Tools Required:

Pozidriv Screwdriver size 2

Accessories:

Auxiliary Contact Blocks
Wire Lug Kits
Mechanical Interlocks
Surge Suppressors

Overload Relays:

3RB Electronic Overload Relays

Replacement Parts:

3RT Contactor Replacement Coils
3RT Contactor Repair Kits

View Catalog Page

View Operating Instructions

View Data Sheet

3RT1056-6AF36 3-Pole Contactor with AC/DC Coil

---

Selection Chart:

Frame Size	Amp ratings		Three phase HP ratings		Catalog No.
	AC3	AC1	230V	460V
S6	185	215	75	150	3RT1056-6AF36

3RT1056-6AF36 Contact Sequence

3RT1056-6AF36 Dimensions
