Siemens Sirius - 3RV1011-0KA10 motor protectors - contactors

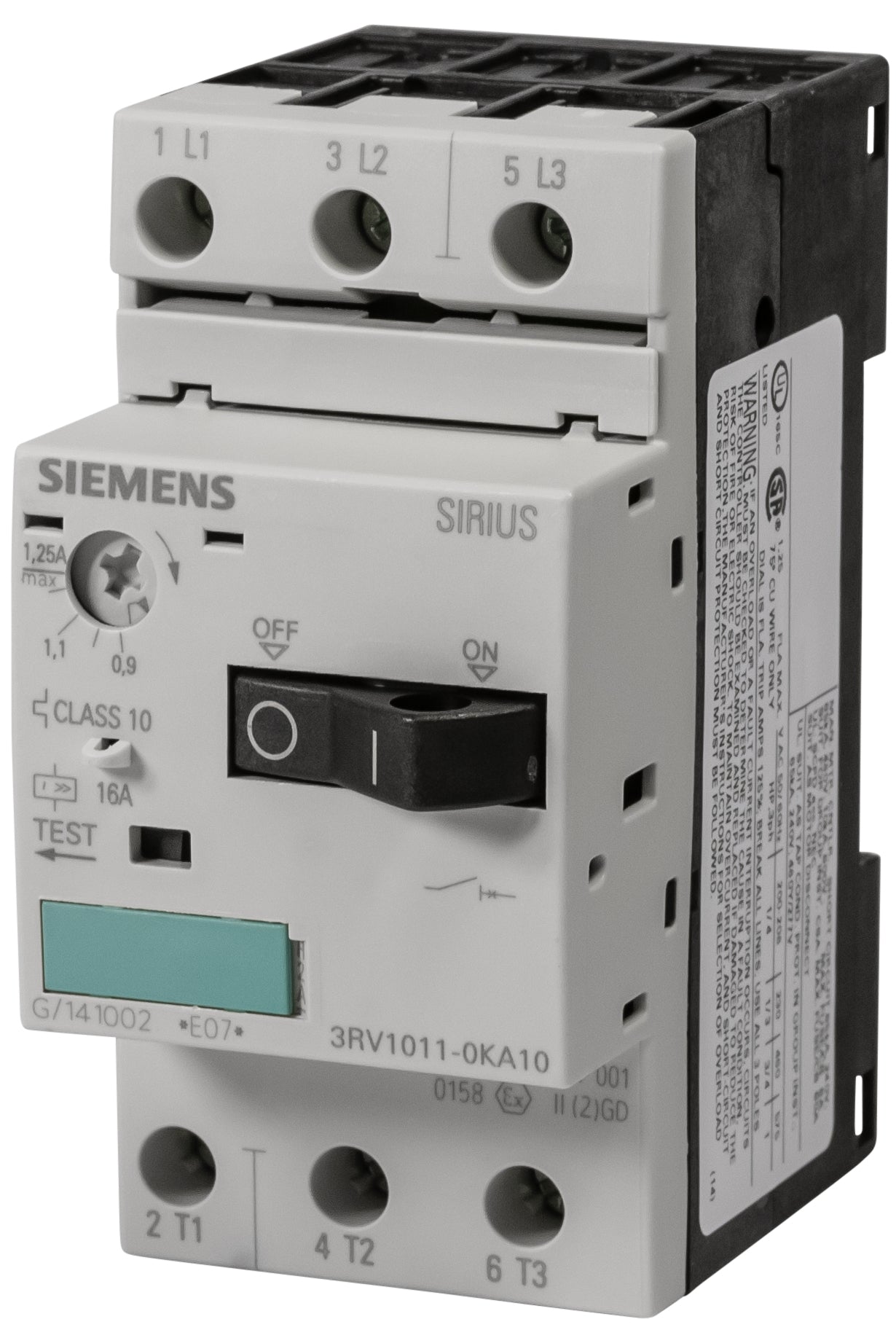

The Siemens Sirius 3RV1011-0KA10
is a circuit breaker / motor protector, with
an on/off rotary dial for setting motor FLA.
It has built-in heater elements that provide
overload protection and magnetic trip elements
to protect the motor.
Class 10
Frame Size S00
Setting Range for Thermal Overload Releases:
0.9 - 1.25
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
View Data Sheet
3RV1011-0KA10 Motor Protector
Selection Chart:
| FLA Adjustment Range | Single Phase HP Ratings | Three phase HP ratings |
Catalog No. | ||||
|---|---|---|---|---|---|---|---|
| 115V | 230V | 200V | 230V | 460V | 575V | ||
| 0.9 - 1.25 | - | - | - | 1/4 | 3/4 | 3/4 | 3RV1011-0KA10 |
