M22-Titan Klockner Moeller 22.5mm (7/8") Selector Switches | ||||
|---|---|---|---|---|
|
4-Way Selector Switches | ||||
 4-way & 2-way joystick selectors |
 4-direction pushbutton selector |
 4-way thumb-grip selector |
 4-way rotary-head selector |
|
| Related Pages: |
Titan M22 Directory Titan M22 Pushbuttons Titan M22 Pilot Lights & Illuminated Pushbuttons Titan M22 Selector Switches Titan M22 Contact & LED Lamp Blocks Titan M22 Enclosures and Base-Mount Contacts Titan M22 Hardware & Accessories Titan M22 4-Way Operators, Joysticks & Selectors Titan M22 Photo Gallery |
|||
| 4-Way and 2-Way Joy-Sticks | ||||
|---|---|---|---|---|
|
Function | Catalog # | Price | |

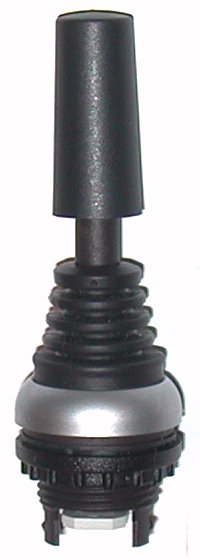

| 4-position, spring-return | M22-WJ4 photo |
60.70 |
||
| 4-position, maintained | M22-WRJ4 photo | |||
| 2-position, right-left, spring-return | M22-WJ2H photo | |||
| 2-position, right-left, maintained | M22-WRJ2H photo | |||
| 2-position, up-down, spring-return | M22-WJ2V photo | |||
| 2-position, up-down, maintained | M22-WRJ2V photo | |||
 Front plate - 4 positions
|
M22-XCK1 photo | 8.20 | ||
| NOTE: These joysticks require the 4-gang contact block holder # M22-A4 which allows 1 contact for each of the 4 directions with option to stack one extra contact on each. For the 2-way joysticks, the M22-A4 allows 1 contact for each odf the 2 directions plus the option to stack one extra contact on each. | ||||
| 4-Way PushButton Operators | ||||
|
|
Function | Catalog # | Price | |
| 4-buttons, black blank | M22-D4-S photo | 53.20 | ||

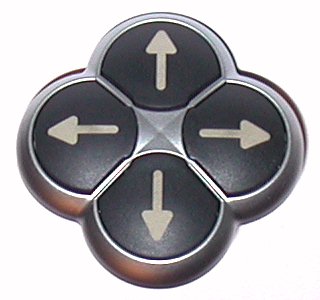

| 4-buttons, w/direction arrows | M22-D4-S-X7 photo | |||
| NOTE: These pushbuttons require the 4-gang contact block holder # M22-A4 which allows 1 contact for each of the 4 directions with option to stack one extra contact on each. | ||||
| 4-Way Thumb Grip Selector Switches | ||||
|
|
Function | Catalog # | Price | |
| 4-position, maintained | M22-WRK4 photo | 28.20 | ||
 Front plate - 4 positions
|
M22-XCK2 photo | 8.20 | ||
| NOTE: These pushbuttons require the 4-gang contact block holder # M22-A4 which allows 1 contact for each of the 4 directions with option to stack one extra contact on each. | ||||
| 4-Way Rotary-Head Selector Switches | ||||
|
|
Function | Catalog # | Price | |
| 4-position, maintained | M22-WR4 photo | 28.20 | ||
|
Front plate - 4 positions
|
M22-XCK2 photo | 8.20 | ||
| NOTE: These pushbuttons require the 4-gang contact block holder # M22-A4 which allows 1 contact for each of the 4 directions with option to stack one extra contact on each. | ||||
| Standard Contact Blocks and 4-Way Holder | ||||
|
Function | Catalog # | Price | |
| 1-N.O. | M22-K10 photo | 5.00 | ||
| 1-N.C. | M22-K01 photo | |||
| 4-Unit Contact Block Holder Holds 4 single contact blocks, one for each direction with the option to stack an extra contact on each. |
M22-A4 photo | 4.30 | ||
