Moeller DIL00AM-10
In stock, can ship today!
717-209-7100
Call to Order 717-209-7100
Same Day Shipping

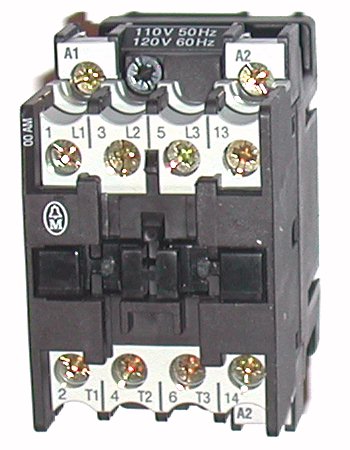

DIL 00AM-10 Klockner Moeller Contactor
The Moeller DIL00AM-10
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 7.5 HP at 460V. It comes with
1NO auxiliary contact.
AC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
DIL00AM-10
AC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 3 | 7.5 | 1 | 0 | 24V50HZ/60HZ | DIL00AM-10(24V50/60Hz) |
| 110V50HZ, 120V60HZ | DIL00AM-10(110V50, 120V60Hz) | ||||
| 208V50/60HZ | DIL00AM-10(208V60Hz) | ||||
| 230V50, 240V60HZ | DIL00AM-10(230V50, 240V60Hz) | ||||
| 415V50, 480V60HZ | DIL00AM-10(415V50, 480V60Hz) | ||||
