DIL00M/11 Klockner Moeller Auxiliary Contact Block

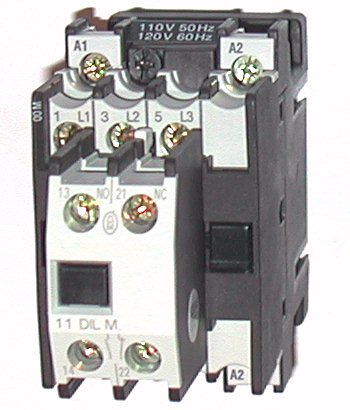

The Moeller DIL00M-11
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 5 HP at 460V. It comes with
1NO and 1NC auxiliary contact.
AC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
DIL00M-11
AC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 3 | 5 | 1 | 1 | 24V50HZ/60HZ | DIL00M-11(24V50/60Hz) |
| 110V50HZ, 120V60HZ | DIL00M-11(110V50, 120V60Hz) | ||||
| 208V50/60HZ | DIL00M-11(208V60Hz) | ||||
| 230V50, 240V60HZ | DIL00M-11(230V50, 240V60Hz) | ||||
| 415V50, 480V60HZ | DIL00M-11(415V50, 480V60Hz) | ||||
