DIL00M/22 Klockner Moeller Auxiliary Contact Block

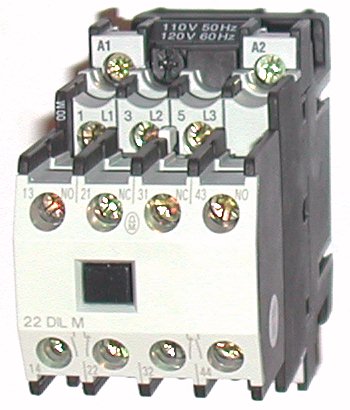

The  Moeller DIL00M-22
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 5 HP at 460V.  It comes with
2NO and 2NC auxiliary contact.


AC Operating Coil Voltage:

Options listed below


Tools Required:

Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:



Overload Relays:


Replacement Parts:


DIL00M-22

AC Selection Chart:

Three phase
HP ratings
Auxiliary
contacts
Coil Voltage / AC Voltage Catalog No.
230V 460V NO NC
3 5 2 2 24V50HZ/60HZ DIL00M-22(24V50/60Hz)
110V50HZ, 120V60HZ DIL00M-22(110V50, 120V60Hz)
208V50/60HZ DIL00M-22(208V60Hz)
230V50, 240V60HZ DIL00M-22(230V50, 240V60Hz)
415V50, 480V60HZ DIL00M-22(415V50, 480V60Hz)
