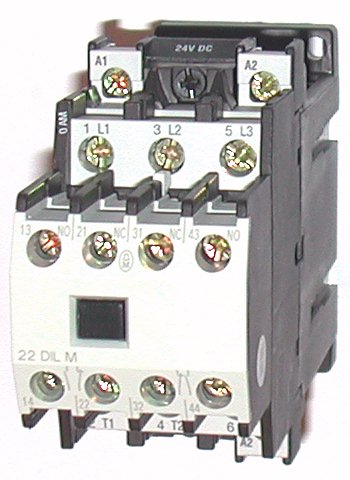

DIL0AM-G/22 Klockner Moeller Auxiliary Contact Block
The Klockner Moeller DIL0AM-G/22
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 7.5 HP at 230V
and 10 HP at 460V. It comes with
2NO and 2NC auxiliary contacts.
DC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
DIL0AM-G/22
DC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / DC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 7.5 | 10 | 2 | 2 | 24V | DIL0AM-G/22(24VDC) |
| 48V |
DIL0AM-G/22(48VDC) | ||||
| 110V |
DIL0AM-G/22(110VDC) | ||||
| 220V | DIL0AM-G/22(230VDC) | ||||
| 240V |
DIL0AM-G/22(240VDC) | ||||
