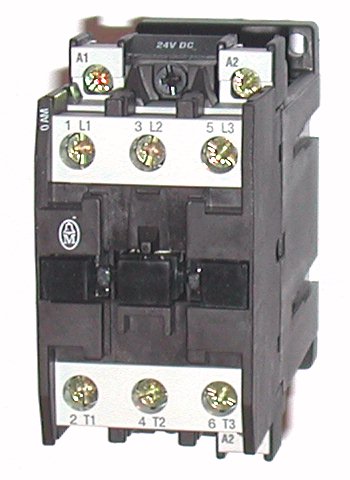

DIL0AM-G Klockner Moeller Auxiliary Contact Block
The Klockner Moeller DIL0AM-G
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 7.5 HP at 230V
and 10 HP at 460V.
DC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
DIL0AM-G
DC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / DC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 7.5 | 10 | 0 | 0 | 24V | DIL0AM-G(24VDC) |
| 48V | DIL0AM-G(48VDC) | ||||
| 110V |
DIL0AM-G(110VDC) | ||||
| 220V | DIL0AM-G(230VDC) | ||||
| 240V |
DIL0AM-G(240VDC) | ||||
