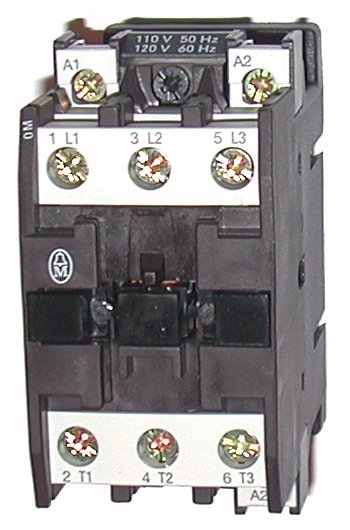

DIL 0M Klockner Moeller Contactor
The Klockner Moeller DIL0M
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 7.5 HP at 230V
and 10 HP at 460V.
AC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
DIL0M
AC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 7.5 | 10 | 0 | 0 | 24V50HZ/60HZ | DIL0M(24V50/60Hz) |
| 110V50HZ, 120V60HZ | DIL0M(110V50, 120V60Hz) | ||||
| 208V50/60HZ | DIL0M(208V60Hz) | ||||
| 230V50, 240V60HZ | DIL0M(230V50, 240V60Hz) | ||||
| 415V50, 480V60HZ | DIL0M(415V50, 480V60Hz) | ||||
