Moeller DIL1M
Stock item. Call for stock check.
Call to Order 717-209-7100
Same Day Shipping

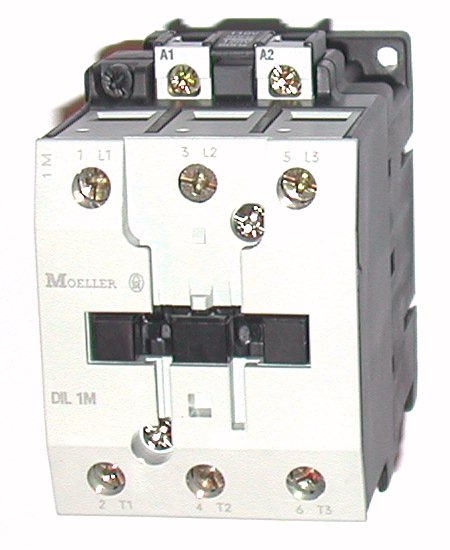

DIL 1M Klockner Moeller Contactor
The Klockner Moeller DIL1M
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 10 HP at 230V
and 20 HP at 460V.
AC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
DIL1M
AC Selection Chart:
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC Voltage | Catalog No. | ||
|---|---|---|---|---|---|
| 230V | 460V | NO | NC | ||
| 10 | 20 | 0 | 0 | 24V50HZ/60HZ | DIL1M(24V50/60Hz) |
| 110V50HZ, 120V60HZ | DIL1M(110V50, 120V60Hz) | ||||
| 208V50/60HZ | DIL1M(208V60Hz) | ||||
| 230V50, 240V60HZ | DIL1M(230V50, 240V60Hz) | ||||
| 415V50, 480V60HZ | DIL1M(415V50, 480V60Hz) | ||||
