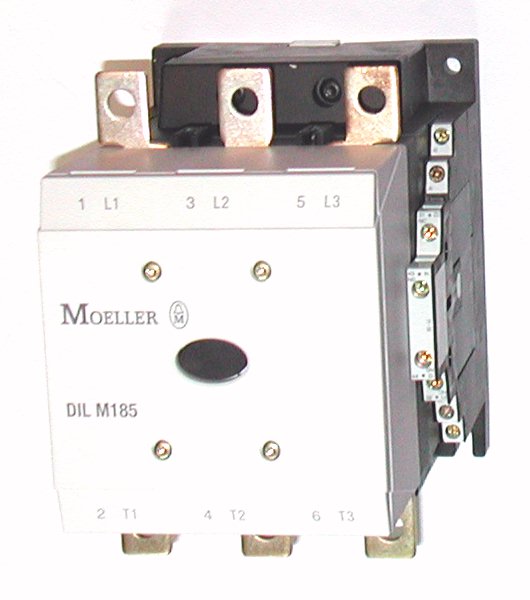

DILM185/22 Klockner Moeller Contactor
The Klockner Moeller DILM182/22
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 60 HP at 230V
and125 HP at 460V. It comes with
2NC and 2NO auxiliary contact.
Conforms to IEC 60947
AC/DC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
DILM185/22 3-pole contactor, AC/DC
Selection Chart: Please specify coil voltage when ordering
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC DC Voltage | Article No. | Catalog No. | |||
|---|---|---|---|---|---|---|---|
| 230V | 460V | NO | NC | 50Hz | 60Hz | ||
| 60 | 125 | 2 | 2 | 24V | 24V | 139536 | DILM185/22 (RAC24) |
| 100V | 120V | 139534 | DILM185/22 (RAC120) | ||||
| 220V | 240V | 139537 | DILM185/22 (RAC240) | ||||
| 380V | 440V | 139538 | DILM185/22 (RAC440) | ||||
| 42V | 48V | 139535 | DILM185/22 (RAC48) | ||||
| 480V | 500V | 139539 | DILM185/22 (RAC500) | ||||
| 24V | 27V | 139540 | DILM185/22 (RDC24) | ||||
| 110V | 130V | 139542 | DILM185/22 (RDC130) | ||||
| 200V | 240V | 139543 | DILM185/22 (RDC240) | ||||
| 48V | 60V | 139541 | DILM185/22 (RDC60) | ||||
DILM185/22 Contact Sequence:
DILM185/22 Dimensions:
DILM185/22 Side Mounting Auxiliary Contacts:
