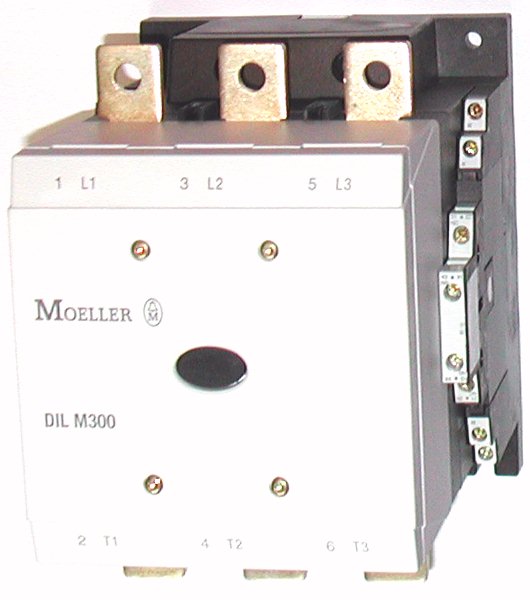

DILM300/22 Klockner Moeller Contactor
The Klockner Moeller DILM300/22
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 125 HP at 230V
and 250 HP at 460V. It comes with
2NCand 2NO auxiliary contact.
Conforms to IEC 60947
AC/DC Operating Coil Voltage:
Options listed below
Tools Required:
Pozidriv Screwdriver size 2
Accessories:
DILM300/22 3-pole contactor, AC/DC
Selection Chart: Please specify coil voltage when ordering
| Three phase HP ratings |
Auxiliary contacts |
Coil Voltage / AC DC Voltage | Article No. | Catalog No. | |||
|---|---|---|---|---|---|---|---|
| 230V | 460V | NO | NC | 50Hz | 60Hz | ||
| 125 | 250 | 2 | 2 | 24V | 24V | 139544 | DILM300/22(RAC24) |
| 100V | 120V | 139546 | DILM300/22(RAC120) | ||||
| 220V | 240V | 139547 | DILM300/22(RAC240) | ||||
| 380V | 440V | 139548 | DILM300/22(RAC440) | ||||
| 42V | 48V | 139545 | DILM300/22(RAC48) | ||||
| 480V | 500V | 139549 | DILM300/22(RAC500) | ||||
| 24V | 27V | 139568 | DILM300/22(RDC24) | ||||
| 110V | 130V | 139552 | DILM300/22(RDC130) | ||||
| 200V | 240V | 139543 | DILM300/22(RDC240) | ||||
| 48V | 60V | 139551 | DILM300/22(RDC60) | ||||
