Klockner Moeller Electric Pushbuttons + Pilot Lights

Klockner Moeller 22.5mm (7/8") Pilot Devices

Please note this series is obsolete and should be used for repair parts only.
Please click here for the NEW Titan series


Pushbuttons

RD-03
standard pushbutton
RDH-RT04
raised-head pushbutton
RP-GN03
mushroom-head pushbutton
RPV
latching E-Stop pushbutton 		QDD-111/110
double pushbutton

Indicating Lights
RL-BL
pilot light 		RLF-GE
flat pilot light 		RLT-RT
illuminated pushbutton 		RLTR-GE
maintained illuminated pushbutton 		RLTH-RT
raised-head illuminated pushbutton

Selector Switches
RWK1R
thumb-grip selector 		RLWK1R-WS
illuminated selector 		RW3R
rotary-head selector 		RS
key-lock selector 		RKSR
toggle switches

Contact Blocks
BK-11
contact block w/holder
EK-10
contact
EF
lamp socket
BE-3
contact holder

Pushbutton Stations and Enclosures
I3M
empty
enclosures
R3M/i

custom assembled
pushbutton stations 		FAK-RT/KC11/i
foot & palm switch

Base-Mount Contact Blocks
for pushbutton stations and enclosures
BK-11C
base-mount contact w/holder
EK-10C
base-mount contact
EFC
base-mount lamp socket
BE-3C
base-mount contact holder

Hardware and Accessories
GL-130
spare bulbs 		MT-D

cover diaphragm 		R22/30-SW
reducing ring adapter 		R22-MS
installation tool
legend plates
and discs






Standard Pushbuttons
RD-03 Color/Legend Catalog # Price
START
 RD-111 6.93
STOP
 RD-110
black
 RD-01
white
 RD-02
green
 RD-03
red
 RD-04
yellow
 RD-05
blue
 RD-06
[ without disc ]
 RD-X 5.76

Raised-Head Pushbuttons
RDH-RT04 Color/Legend Catalog # Price
START
 RDH-GN111
6.93
STOP
 RDH-RT110
black
 RDH-SW01
green
 RDH-GN03
red
 RDH-RT04
[ black, without disc ]
 RDH-SWX 5.76
[ green, without disc ]
 RDH-GNX
[ red, without disc ]
 RDH-RTX

Mushroom-Head Pushbuttons
RP-GN03 Color/Legend Catalog # Price
START
 RP-GN111
16.02
STOP
 RP-RT110
black
 RP-SW01
green
 RP-GN03
red
 RP-RT04
yellow
 RP-GE05
[ black, without disc ]
 RP-SWX 14.94
[ green, without disc ]
 RP-GNX
[ red, without disc ]
 RP-RTX
[ yellow, without disc ]
 RP-GEX

Latching Emergency-Stop Push-Pull Button
RPV Color Catalog # Price
red
 RPV 31.05

Double Pushbuttons
QDD-111/110 Color/Legend Catalog # Price
START  STOP
QDD-111/110 17.19
START white light STOP
[ with lens for white light ]
QDDL-111/110 21.78

Standard Pilot Lights - Indicating Lights
RL-BL Color Catalog # Price
white
 RL-WS 8.55
green
 RL-GN
red
 RL-RT
yellow
 RL-GE
blue
 RL-BL

Pilot Lights - Low Profile
RLF-GE Color Catalog # Price
white
 RLF-WS 6.93
green
 RLF-GN
red
 RLF-RT
yellow
 RLF-GE
blue
 RLF-BL

Illuminated Pushbuttons
RLT-RT Color Catalog # Price
white
 RLT-WS 9.72
green
 RLT-GN
red
 RLT-RT
yellow
 RLT-GE
blue
 RLT-BL

Maintained Illuminated Pushbuttons
Push once to latch in, push again to release.
RLTR-GE Color Catalog # Price
white
 RLTR-WS 32.04
green
 RLTR-GN
red
 RLTR-RT
yellow
 RLTR-GE
blue
 RLTR-BL
NOTE: When installed without the lamp, these become standard maintained pushbuttons.

Raised-Head Illuminated Pushbuttons
RLTH-RT Color Catalog # Price
white
 RLTH-WS 12.60
green
 RLTH-GN
red
 RLTH-RT
yellow
 RLTH-GE
blue
 RLTH-BL

Selector Switches with Thumb Grip
RWK1R Function Catalog # Price
90°  2-position, maintained RWK1V 12.60
60°  2-position, maintained RWK1R
45°  2-position, spring from right RWK1 16.02
60°  3-position, maintained RWK3R 12.60
45°  3-position, spring from right RWK3R1 16.02
45°  3-position, spring from left RWK3R2
45°  3-position, spring from both RWK3
NOTE: All 3-position selectors will accept 1 contact block for "right" function and 1 contact block for "left" function but no contact block for the "center off" function. All 2-position selectors will accept up to 3 contact blocks activated in "right" position and "off" in left position. For both types, the contact blocks can be either single or double contact types.

Illuminated Selector Switches
RLWK1R-WS The 2-position and 3-position thumb-grip selector switches shown above are also available in illuminated versions, in colors of white, green, red, yellow, and blue. Please inquire for further details.

Selector Switches with Rotary Head
RW3R


specify front disc
for these types. 		Function Catalog # Price
60°or60°  2-position, maintained RW1R 12.60
45°  2-position, spring from right RW1 16.02
60°  3-position, maintained RW3R 15.21
45°  3-position, spring from right RW3R1 17.19
45°  3-position, spring from left RW3R2
45°  3-position, spring from both RW3
NOTE: All 3-position selectors will accept 1 contact block for "right" function and 1 contact block for "left" function but no contact block for the "center off" function. All 2-position selectors will accept up to 3 contact blocks activated in "right" position and "off" in left position. For both types, the contact blocks can be either single or double contact types.

Key-Lock Selector Switches
RS Function Catalog # Price
60°  2-position, maintained RS 47.07
60°  3-position, maintained RS3 47.07
spare key ES-KMS1 5.75
The keylock selector switches are available in a wide variety of functions, including spring return types similar to the standard selector switches shown in previous sections.

A multi-level master-key system is available.
NOTE: All 3-position selectors will accept 1 contact block for "right" function and 1 contact block for "left" function but no contact block for the "center off" function. All 2-position selectors will accept up to 3 contact blocks activated in "right" position and "off" in left position. For both types, the contact blocks can be either single or double contact types.

Toggle Switches
RKSR Function Catalog # Price
toggle switch, maintained RKSR 21.78
toggle switch, spring return RKS 24.12

Standard Contact Blocks With Holder
These snap onto the back of any pushbutton or selector operator shown above.
BK-11 Function Catalog # Price
1-N.O. & 1-N.C. BK-11 42.00
1-N.O. BK-10 23.50
1-N.C. BK-01 23.50
NOTE: Numerous other variations are available.

Standard Contact Blocks, Without Holder
For door or cover mounting. BE-3 holder needed.
EK-10 Function Catalog # Price
1-N.O. EK-10 18.50
in stock
1-N.C. EK-01 18.50
in stock
1-N.O. + 1-N.C. EC-11 17.19
2-N.O. EC-20 17.19
2-N.C. EC-02 17.19
1-N.O. early make EK-10P 11.43
1-N.C. late break EK-01R 11.43

Standard Contact Blocks, Previous Series K-NA
K-NA Function Catalog # Price
1-N.O. + 1-N.C. K-NA photo 48.00

Standard Lamp Sockets, Without Holder
For door or cover mounting. BE-3 holder needed.
EF Function Catalog # Price
standard socket, up to 250 volts. EF 34.50
120 Volts, for longer life span EF1 34.50
for GL-130 bulb in 240 volt circuit, with resistor.
Requires 2 slots in holder.		 EFR 34.50
for GL-130 bulb in 240 volt circuit, with diode. EF3 34.50
24 volts, limited peak inrush current. EF0 34.50
bulb socket, up to 250 volts, with bulb-test circuit. Requires 2 slots in holder. EFD 41.22
for GL-130 bulb in 240 volt circuit, with bulb-test circuit. Requires 2 slots in holder. EFDR 44.73

Standard Contact Block Holder
For door or cover mounting.
BE-3 Description Catalog # Price
Holds up to 3 single or double contact blocks, or 1 lamp socket with 1 or 2 contact blocks. Snaps to back of pushbutton operator or lamp assembly. BE-3 5.00

Pushbutton Enclosures
These enclosures are suitable for NEMA-4 applications.
"Base-mounting" contacts, lamp sockets etc. are required.
I3M Description Catalog # Price
1-unit enclosure, empty. I1M 16.02
2-unit enclosure, empty. I2M 22.95
3-unit enclosure, empty. I3M 28.71
4-unit enclosure, empty. I4M 33.21
5-unit enclosure, empty. I5M 40.14

Complete Assembled Pushbutton Enclosures
These units are suitable for NEMA-4 applications.
Pricing is based on the sum of the components, we provide free assembly.

R3M/i 		Description Catalog # Price
1 pushbutton with 1 contact. RD-.../KC-10/i 34.38
1 pushbutton with 2 contacts. RD-.../KC/i 42.93
1 red mushroom button with 1 contact. RP-RT110/KC01/i 43.47
1 latching E-STOP with 1 contact. RPV/KC01/i 58.50
2 buttons with 1 contact each. R2M/11/i 59.67
2 buttons with 2 contacts each. R2M/i 76.77
2 buttons with 1 contact each, plus pilot light R3M-L/i 90.61
3 buttons with 1 contact each. R3M/10/i 83.79
4 buttons with 1 contact each. R4M/10/i 106.65
5 buttons with 1 contact each. R5M/10/i 131.94
NOTE: The units shown above are only an example of what is available.
We will custom-build to your exact requirements, with no assembly charge.

Foot & Palm Switch - 4" Mushroom
FAK-RT/KC11/i Color Catalog # Price
red/yellow
 FAK-RT/KC11/i 87.66
black/gray
 FAK-SW/KC11/i 87.66
yellow/gray
 FAK-GE/KC11/i 87.66

Price includes NEMA-4 enclosure, 1-N.O. and 1-N.C. switch contacts.
Other contact arrangements are available with maximum of 3 single contacts.

Latching versions are available.

These extremely rugged switches are suitable for cleaning with high-pressure water or steam jets.

Base-Mount Contact Blocks With Holder
These snap into pushbutton enclosures for any pushbutton or selector operator.
BK-11C Function Catalog # Price
1-N.O. & 1-N.C. BK-11C 20.61
1-N.O. BK-10C 11.43
1-N.C. BK-01C 11.43
NOTE: Numerous other variations are available.

Base-Mount Contact Blocks, Without Holder
For base or enclosure mounting. BE-3C holder needed.
EK-10C Function Catalog # Price
1-N.O. EK-10C 18.50
1-N.C. EK-01C 18.50
1-N.O. early make EK-10P 11.43
1-N.C. late break EK-01R 11.43

Base-Mount Lamp Sockets, Without Holder
For base or enclosure mounting. BE-3C holder needed.
EFC Function Catalog # Price
standard socket, up to 250 volts. EFC 11.43
120 Volts, for longer life span EF1C 14.94
for GL-130 bulb in 240 volt circuit, with resistor.
Requires 2 slots in holder.		 EFRC 14.94
for GL-130 bulb in 240 volt circuit, with diode. EF3C 14.94
24 volts, limited peak inrush current. EF0C 14.94
bulb socket, up to 250 volts, with bulb-test circuit. Requires 2 slots in holder. EFDC 41.22
for GL-130 bulb in 240 volt circuit, with bulb-test circuit. Requires 2 slots in holder. EFDRC 44.73

Base-Mount Contact Block Holder
For base or enclosure mounting.
BE-3C Description Catalog # Price
Holds up to 3 single contact blocks, or 1 lamp socket with 1 or 2 single contact blocks. Snaps into base of enclosure. BE-3C 2.88

Replacement Bulbs - Miniature Bayonet, BA9s
GL-130 Voltage Catalog # Price
24 Volts, bulb only. GL-24 5.20
120 Volts, bulb only. GL-130 5.20

Pushbutton Cover - Diaphragm
For extreme environmental conditions.
MT-D Description Catalog # Price
Cover for standard pushbuttons. MT-D 7.47
Cover for QDD double pushbuttons. MT-DD 7.47

Reducing Ring Adapter
R22/30-SW Description Catalog # Price
Reducing ring adapter to install 22mm buttons in 30.5mm (1.2") holes. Includes black front-trim ring plus oversized nut. R22/30-SW 2.88

Installation Tool
R22-MS Description Catalog # Price
Includes box-wrench to tighten large nut,
plus bulb extractor and trim-ring tightener, etc.
You need this!		 R22-MS 5.76

Legend Plates
Legend plates & Discs Description Catalog # Price
Pushbutton Discs
Note these are already included in price
on most pushbuttons shown above.		 ...T
select below		 1.17
Ring Labels
Pictures will be available soon.		 RAS-... 1.62

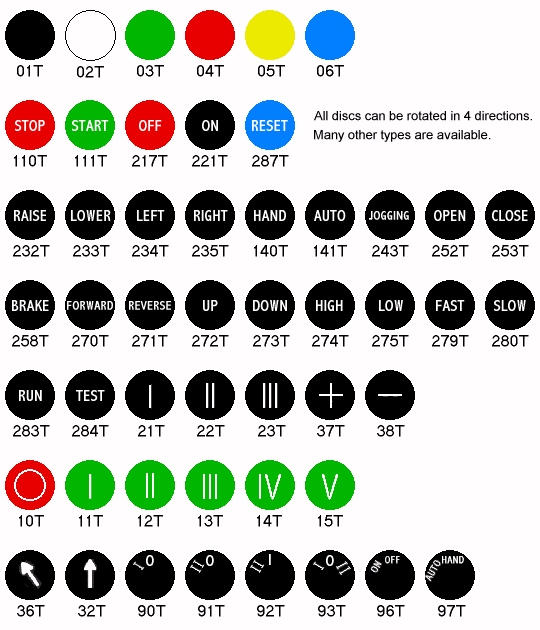

Standard Pushbutton Discs:
