DIL1M Moeller Electric

Stocking Klockner Moeller, Siemens, Allen-Bradley
Lancaster, PA
(717) 209-7100
Klockner Moeller Electric
DIL1M

Same Day Shipping




Moeller Electric DIL1M


Call to order (717) 209-7100
or click on price to place in cart

KLOCKNER MOELLER ELECTRIC DIL1M

Tools Required:

Pozidriv Screwdriver size 2
pozidrive screwdriver

Accessories:

Overload Relays:

Replacement Parts:

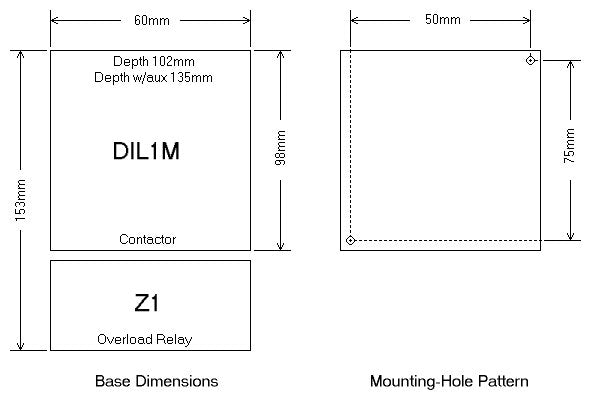

DIL1M Dimensions:


Replacement notes:

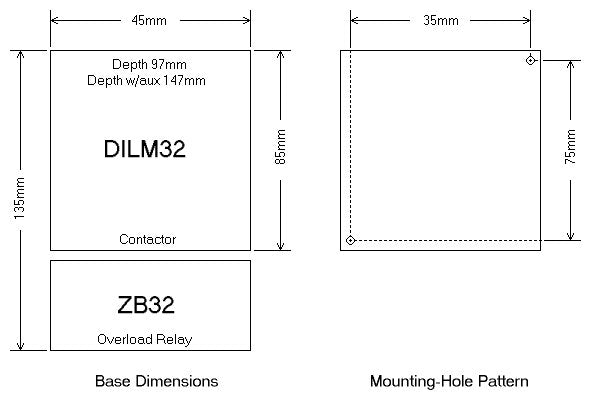

The original Klockner Moeller DIL1M series is replaced by Moeller Electric's new DILM32 series. The DILM32 is a good replacement and is a bit smaller than the original. The mounting holes do not line up. A little extra depth is needed. Moeller also offers the new plug-in overloads series ZB32 to fit the new DILM32.

DILM32 Contactor Selection Chart:
Always specify coil voltage.
3-Phase
Motor
Horsepower
Cont.
Amps
Built-In
Auxiliary
Contacts
Catalog #
Old / New
10 hp @ 200 V
10 hp @ 230 V
20 hp @ 460 V
25 hp @ 575 V
40 1 - N.O. DIL1M
DILM32-10
