DIL2AM Moeller Electric

Stocking Klockner Moeller, Siemens, Allen-Bradley	Lancaster, PA (717) 209-7100
Klockner Moeller Electric DIL2AM	Same Day Shipping

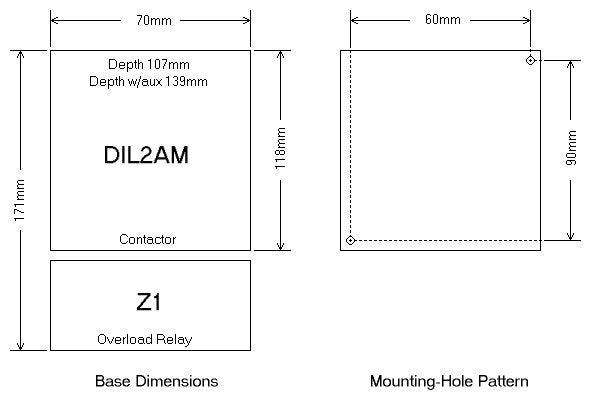

MOELLER ELECTRIC DIL2AM Call to order (717) 209-7100 or click on price to place in cart KLOCKNER MOELLER ELECTRIC DIL2AM Other DIL M Contactors TOOLS REQUIRED: Pozidriv Screwdriver size 2 ACCESSORIES: Auxiliary Contact Blocks OVERLOAD RELAYS: Z1 Overload Relays Interface Relays REPLACEMENT PARTS: J-DILM replacement coils DIL2AM DIMENSIONS: Replacement notes: The original Klockner Moeller DIL2AM series is replaced by Moeller Electric's new DILM32 series. The DILM65 is a good replacement and is a bit smaller than the original. The mounting holes do not line up. A little extra depth is needed. Moeller also offers the new plug-in overloads series ZB65 to fit the new DILM65.
DILM65 Contactor Selection Chart: Always specify coil voltage.
3-Phase Motor Horsepower	Cont. Amps	Built-In Auxiliary Contacts	Catalog # Old / New
20 hp @ 200 V 25 hp @ 230 V 50 hp @ 460 V 60 hp @ 575 V	80		DIL2AM DILM65

MOELLER ELECTRIC DIL2AM
