DIL3M80 Moeller Electric

Stocking Klockner Moeller, Siemens, Allen-Bradley
Lancaster, PA
(717) 209-7100
Klockner Moeller Electric
DIL3M80

Same Day Shipping




MOELLER ELECTRIC DIL3M80


Call to order (717) 209-7100
or click on price to place in cart

KLOCKNER MOELLER ELECTRIC DIL2AM

TOOLS REQUIRED:

Pozidriv Screwdriver size 2
pozidrive screwdriver

ACCESSORIES:

OVERLOAD RELAYS:

REPLACEMENT PARTS:

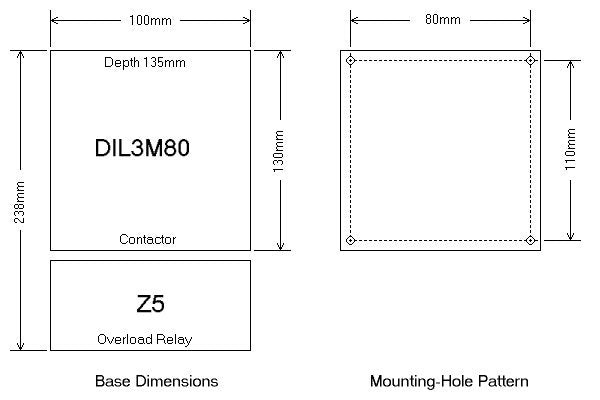

DIL3M80 DIMENSIONS:


Replacement notes:

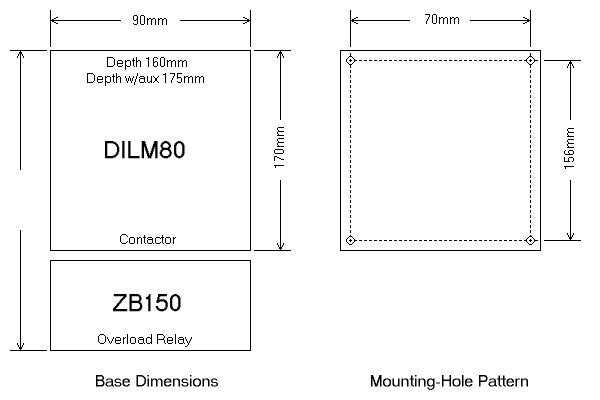

The original Klockner Moeller DIL3M80 series is replaced by Moeller Electric's new DILM80 series. The DILM80 is a good replacement and is a bit smaller than the original. The mounting holes do not line up. A little extra depth is needed. Moeller also offers the new plug-in overloads series ZB150 to fit the new DILM80.

DILM80 Contactor Selection Chart:
Always specify coil voltage.
3-Phase
Motor
Horsepower
Cont.
Amps
Built-In
Auxiliary
Contacts
Catalog #
Old / New
25 hp @ 200 V
30 hp @ 230 V
60 hp @ 460 V
75 hp @ 575 V
100 DIL3M80
DILM80
