3RH1122-1A

3RH1122-1A Siemens Sirius Control Relay

The Siemens Sirius 3RH1122-1A is
a 4 pole IEC rated Control Relay with 4
fixed contacts. It comes with 2NO
and 2NC contacts.
Identification Number 22E.
International Standard EN 50 011
Conforms to IEC 60947-5-1

3RH1122-1A Control Relay

---

Selection Chart:

Frame Size	Identification No.	Auxiliary contacts		Coil Voltage / AC Voltage		Catalog No.
		NO	NC	50Hz	60Hz
S00	22E	2	2	24V	24V	3RH1122-1AB00
				110V	120V	3RH1122-1AK60
				220V	240V	3RH1122-1AP60

Worldwide Selection Chart:

Frame Size	Identification No.	Auxiliary contacts		Coil Voltage / AC Voltage		Catalog No.
		NO	NC	50Hz	60Hz
S00	22E	2	2	42V	42V	3RH1122-1AD00
				110V	110V	3RH1122-1AF00
				48V	-	3RH1122-1AH00
				120V	120V	3RH1122-1AK20
				208V	208V	3RH1122-1AM20
				220V	220V	3RH1122-1AN20
				230V	-	3RH1122-1AP00
				400V	-	3RH1122-1AV00
				-	480V	3RH1122-1AV60

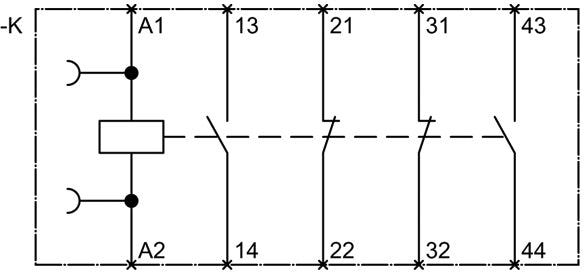

3RH1122-1A Contact Sequence
