PKZM0-1

PKZM0-1

KLOCKNER MOELLER ELECTRIC
Genuine New OEM Part

  • $85.88
    Unit price per

In stock, can ship today!

717-209-7100



Call to Order 717-209-7100
Same Day Shipping

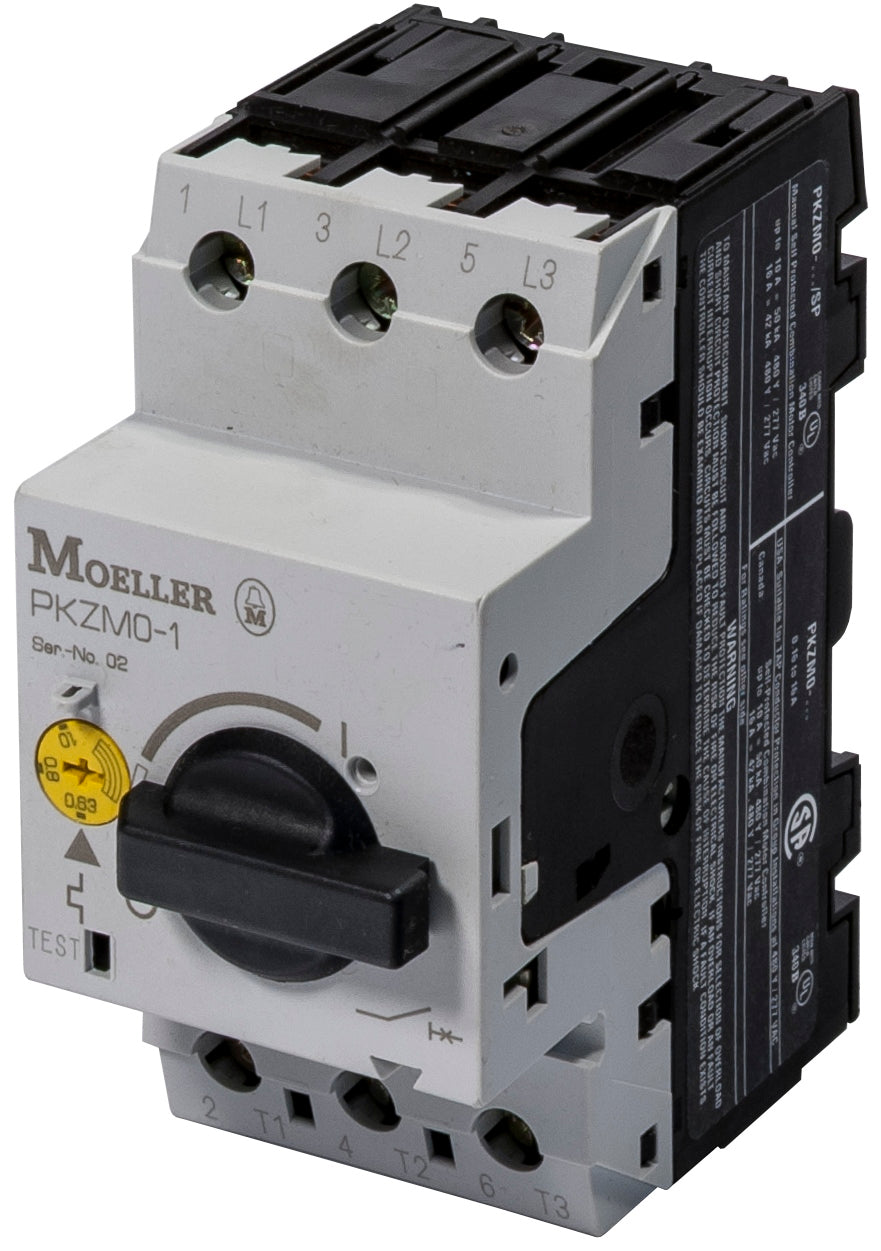

PKZM0-1 Klockner Moeller Motor Protector

The Klockner Moeller PKZM0-1 is a
3 phase thermal-magnetic motor protective device
incorporating adjustable bimetal trips for motor
overload protections and magnetic trips to de-energize
the motor circuit in case of a short circuit.

Options listed below

Overload release adjustable from 0.63 - 1 AMPS

Plug-In Contactors:

Auxiliary Contacts:

Accessories:

pdfpicView Data Sheet

PKZM0-1 Motor Protector


Selection Chart:

Rated Un-interrupted Current Setting Maximum HP Three phase Catalog No.
Overload Releases Short Circuit Releases 200V 240V 480V 600V
1.6 1 - 1.6 22 - - 0.75 0.75 PKZM0-1,6
10 6.3 - 10 140 3 3 7.5 10 PKZM0-10
12 8-12 168 3 3 7.5 10 PKZM0-12
0.16 1 - 16 2.2 In this range, select motor protector in accordance with the motor name plate full load current PKZM0-16

PKZM0-1 Dimensions
